Massoth DiMAX Wireless Navigator

Product number: 8134701
$375.00 plus shipping

In stock for immediate delivery
Please contact us to order

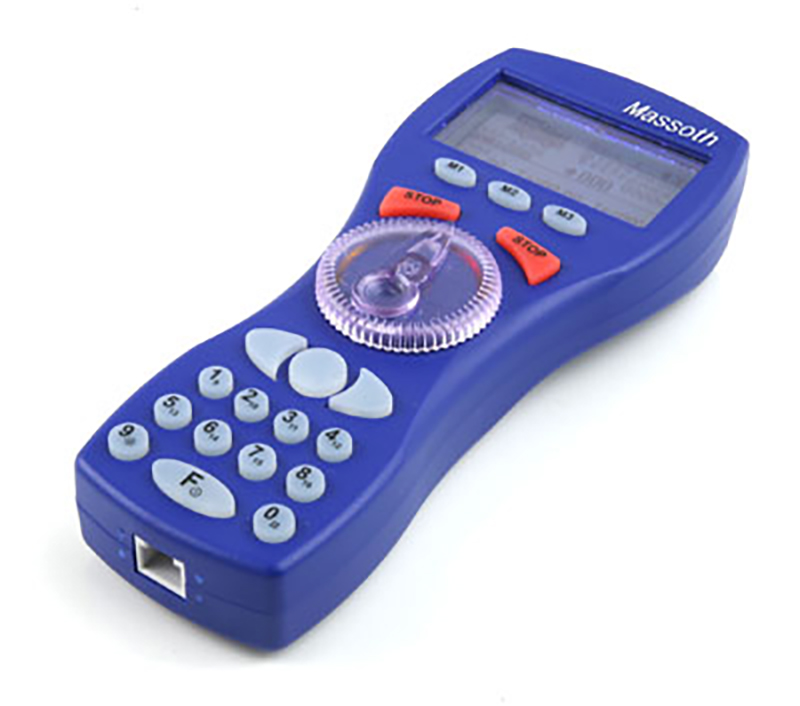

Massoth DiMAX Wireless Navigator

The DiMAX Wireless Navigator is a state-of-the-art, ergonomically shaped, cab controller for digital model railroads. It offers an extensive array of features and functions and an easy to use, intuitive control menu. The control menu can be displayed in German, English, French, Dutch, Italian, Spanish and a few other languages.

Because of its symmetrical shape and balanced weight distribution, the navigator is equally comfortable for right-handed and left-handed users. Its large, back-lit LCD with a white background is easy to read, even in extreme lighting conditions.

The navigator's split screen display, its dial control knob and a set of 3 programmable function keys allow users to control two separate devices at the same time (e.g. controlling one locomotive via the dial control knob and another via the function keys, or operating a turnout switch via the function keys while controlling a locomotive via the dial control knob).

Communication between Navigator and central station is bidirectional; the Navigator can send commands to and receive updated information from the central station and other bus modules.

The DiMAX Wireless Navigator is factory equipped a wireless transmitter. It communicates with the central station either wirelessly or via a cable connection.

Three AA batteries are required for wireless operation; alkaline or rechargeable (NiMH or NiCd) batteries are recommended.

The Navigator has the ability to charge rechargeable batteries during tethered operation, a feature that can be enabled or disabled by using the Navigator control menu.

Wireless communication requires Massoth's DiMAX Wireless Receiver [product number: 8132001].

Features of the Navigator:
  • Back-lit, split-screen LCD with white background
  • Illuminated control dial
  • Illuminated multifunction keypad
  • An easy to use, intuitive control menu
  • System status display, e.g. current amperage
  • 99 functions: 28 Function keys(F1 through F28) + light function key (F0) + 60 binary states
  • Parallel and serial data processing
  • Programmable STOP keys
  • Blocking function to prevent unintended changes
  • Locomotive addresses can be configured with alphanumeric locomotive names and pictographs
  • The pictographic library includes all LGB® and many popular G-scale models
  • 16 consists with up to 4 locomotives per consist
  • 16 programmable switch routes with up to 15 switches per route
  • 32 automatic functions for driving and switching
  • Can be used wirelessly or via a cable connection
  • Compatible with the LGB® MTSIII system
  • May be used with the Piko® system
  • May be used with an LGB® 51070 throttle or a Piko® 35002 throttle for wireless analog operation
System Properties:
  • 10239 locomotive addresses
  • 14 / 28/ 128 speed steps
  • 2048 switch addresses
  • 2048 feedback addresses
  • Database of 128 pre-configured locomotives
  • 32 simultaneously controllable locomotives
  • Automatic functions without PC
  • Write CV (direct / indirect)
  • Read CV
  • Register programming
  • PoM (Programming-on-the Main)
  • Firmware version 2.0
Scope of delivery:
  • DiMAX Wireless Navigator
  • DiMAX Bus Cable
  • User's Manual
