Massoth eMOTION 8FL Function and Light Decoder

Product number: 8152001
$44.90 plus shipping

In stock for immediate delivery
Please contact us to order

eMotion 8FL function and  light Decoder

The Massoth 8FL is a miniature function decoder, featuring 8 function outputs, each with a maximum load capacity of 500mA, and a total combined load capacity of 1 Amp. It can handle servos, Massoth motor drives, Massoth uncouplers, light bulbs, and LEDs. Light and function outputs are dimmable and can be activated in analog mode.

The 8FL features two programmable high resolution function outputs for RC servo control permitting standard and precision servo push button operations as well as servo operations with speed steps. Operation of RC servos requires a separate, stabilized 5V circuit.

The Massoth eMOTION 8FL decoder is compatible with NMRA DCC.

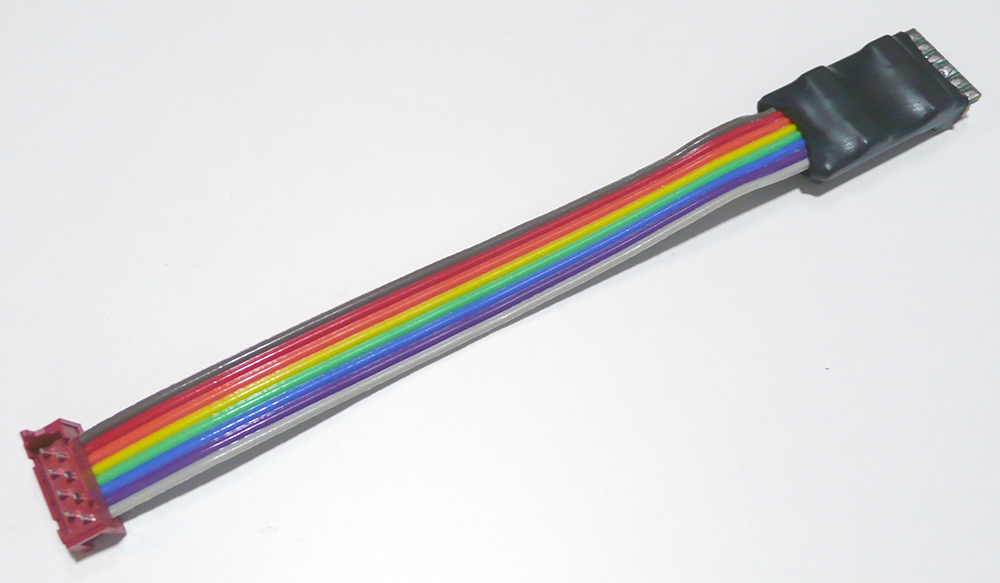

The 8FL decoder is supplied with a custom made connector which fits the function decoder interface found in many of LGB®'s RhB cars (e.g. 30250, 30523, 31520, 3152). These cars are ready, and perfect for retrofitting with the eMOTION 8 FL Function Decoder. These cars use 4 the 8 available functions of the 8FL decoder, leaving the other four for your choice of functions.

You may install the function decoder in components that do not have an LGB® function interface connection by cutting off the custom made connector. Detailed wiring diagrams are provided in the user's manual

The eMOTION 8 FL Function Decoder is very small in size; 14mmx28mm with a thickness of only 6mm, allowing easy installation in locomotives, cars, and buildings.

Summary of Features:

  • Total current: 1.2Amps
  • Function outputs current: 1.0Amps
  • 8 programmable function outputs, 8 x 500mA
  • 2 RC servo control channels with high resolution output for standard and precision servo operations
  • Handles servos, Massoth motor drives, Massoth uncouplers, light bulbs and LEDs
  • Light and function outputs dimmable; can be activated in analog operation
  • Digital and analog operation with automatic recognition
  • Compatible with NMRA DCC
  • 10239 Locomotive addresses
  • Separate programming address
  • 14/28 speed steps for servo functions
  • 28 programmable function keys
  • 127 binary state functions
  • Parallel control of function outputs, serial control mode is not supported
  • Overload protection for function outputs
  • Overheat protection for function outputs
  • Easy to use function mapping with direction assignment
  • Rest function for all CV values
  • Programming-on-Main (POM)

Technical specifications

  • Power supply: 7-24 Volts DC/DCC
  • Maximum total load: 1.0 Amps
  • Temperature Range: -4°F to 122°F
  • Dimensions: 29x18x6mm

Scope of Delivery

  • eMOTION 8FL Decoder
  • Double-sided Tape
  • User's Manual
