Massoth eMOTION XLS Sound Decoder

Product number: 82x0xxx
$229.00 plus shipping

In stock for immediate delivery
Please contact us to order

eMotion XLS Sound Decoder

The Massoth emotion XLS decoder is a powerful 4.0Amps driving, function, and sound decoder designed for installation in G scale locomotives equipped with 1 or 2 driving motors.

The XLS features a 3.5Amps output stage for up to two motors, 3 light outputs, 8 function outputs, 4 contacts inputs, a Massoth-SUSI interface, and an integrated 3-watt high performance sound amplifier with 6 independent sound channels.

The XSL offers selectable 14/28/128 speed steps, analog and digital operation, digital and analog Back EMF, and overload-overheat protection for motor and function outputs.

The decoder holds a little over 3 minutes of high quality digital sound. It stores a locomotive's prototypical operating sounds as well as an array of additional sounds that may be configured to suit individual tastes. The integrated digital power amplifier reproduces all sounds and side noises of a locomotive authentically.

Operating the XLS decoder with an additional power buffer increases its dependability: brief track power disruptions are bridged in analog and digital operation and contaminated tracks and switch frogs are negotiated without any speed changes or interruptions.

The XLS decoder comes with an LGB® DCC interface cable to simplify installation in locomotives equipped with an LGB® DCC interface. An optional interface cable to simplify Installation in locomotives equipped with LGB® six-pin decoder interface is available (product # 8312061).

The eMOTION XLS sound decoder supports the full NMRA protocol, and is compatible with all generations of the LGB® MTS system.


Summary of Features:

  • Total amperage: 4.0Amps
  • Motor amperage: 3.5AMps
  • Light and function outputs amperage: 1.3Amps
  • Compatible with NMRA DCC and all generations of LGB® MTS systems
  • Serial and parallel control of all lights and function outputs, including LBG® P-sound updates
  • Digital and analog operation with automatic recognition
  • 10239 Locomotive addresses
  • 14/28/128 speed steps
  • 256 internal speed steps
  • Programmable speed curve
  • Adjustable starting, mid, and maximum speed
  • Adjustable acceleration and deceleration time
  • Adjustable motor frequency (90Hz-16kHz)
  • Latest load control technology, Back-EMF, analog and digital
  • Switching speed activated with mappable function key
  • 3 light outputs, 3 x 300mAmps (front, interior, and rear)
  • 8 function outputs, 4 x 600mAmps (F1-F4), 4 X 10mAmps (F5-F8)
  • 2 Reed contact inputs
  • RC servo control channel
  • Connection for optional power buffer
  • Connection for programmable pulse generation function
  • Massoth-SUSI interface
  • Light and function outputs dimmable; can be activated in analog operation
  • Programmable blinking lights, short-duration function, and pulse generator function
  • Easy to use function mapping
  • Free command allocation of all function outputs (F1-F16)
  • Rest function for all CV values
  • Overload protection for function outputs
  • Overheat protection for function outputs
  • Sounds and firmware updatable

Sound Features:

  • 3 watts hi-performance amplifier for 8 Ohms speaker
  • 6 channel play-back (6 sounds at the same time)
  • Memory capacity for max. 200 sec. of recorded sound
  • 4 driving sounds, and 12 side noises, selectable
  • play-back frequency: 16KHz
  • Volume control by potentiometer or CV programming (also individual sounds)
  • Sound functions usable in analogue mode

Features for Mallets, Rack Rail locomotives, and Dual Powered Locomotives: (1) The XLS Decoder has 2 separate inputs for synchronizing chuffs to wheel rotation in locomotives with two steam pistons like Mallets or steam rack rail Locomotives. (2) Starting with version 2.5, you can use CV 170 to define a function key which, when pressed, will activate/deactivate the rack noise on a steam rack rail engine, or switch the sound from electric to diesel and vice versa on a dual powered locomotive.

Technical specifications

  • Power supply: 0-24 Volts DC/DCC
  • Maximum total load: 4.0Amps
  • Motor output: Max. 3.5Amps, 70Hz-16kHz, load controlled, digital and analog
  • Light outputs: Max.(3 X 300mAmps) 22V dimmable
  • Function outputs:(4 X 600mAmps), (4 X 10mA)
  • Total light and function outputs combined: Max. 1.3Amps
  • Loudspeaker 8 Ohms (Min. 1.5 watts)
  • Temperature range: -4°F to 113°F
  • Dimensions: 55x32x15mm

Scope of Delivery

  • eMOTION XLS Decoder
  • One Loudspeaker (see listing below)
  • LGB DCC Interface cable
  • 2 sets of LGB® motor-block connecting cables (4 pieces each)
  • 2 screws 2.9x13 mm
  • 2 screws 2.9X19mm
  • User's Manual

Adobe Thumbnail
User's manual

Adobe Thumbnail
Configuration manual

Adobe Thumbnail
Recommended loudspeaker

Massoth eMOTION XLS Decoder sound options

The XLS decoders are programmed at the factory with one of the locomotive sounds listed below. At any given time, we may not have in stock a factory programmed decoder with the sound you want. We can re-program any XLS decoder we have in stock with the specific sound you want, at no extra charge.

To view the sound data sheet for a specific decoder, click on the corresponding reference number. To view the picture of the prototype locomotive, click on the locomotive's name. To listen to a sample of how the decoder reproduces the sounds of a specific locomotive, click on the corresponding speaker icon.

The music you hear in the background of the sample is for copy protection only; you will not hear it when listening to an actual decoder.

Availability status legend
not in production Not in production, not available
New Item, available shortly New Item, available shortly
available Available, in stock
available Available, in very short supply
not available Currently unavailable, out of stock

Reference Number Availability Status Prototype Locomotive's Name and Picture MP3
Steam Locomotives
8210014 item available Industrial field railway steam locomotive speaker
8210015 item available Tender for steam locomotive
8210018 item available Franzburg steam locomotive
8210019 item available US steam locomotive, 2-6-0 Mogul speaker
8210021 item available Stainz steam locomotive speaker
8210025 item available US steam locomotive Forney/Columbus speaker
8210026 item available HF 110 Rail Nicki & Frank S steam locomotive speaker
8210027 item available G 3/4 RhB Heidi steam locomotive speaker
8210047 item available HG 3/3 Ballenburg cog wheel steam Locomotive speaker
8210050 item available Kastendampflok, Feuriger Elias steam locomotive speaker
8210071 item available Baureihe U, Zillertalbahn steam locomotive speaker
8210074 item available 1C 99-5633 Spreewald steam locomotive speaker
8210080 item available 1C1 99-6001 HSB 2-6-2 steam locomotive speaker
8210081 item available 1E1 99-222 HSB 2-10-2 steam locomotive speaker
8210084 item available Saxonian IV K steam locomotive speaker
8210085 item available DR Mallet steam locomotive speaker
8210087 item available Mikado steam locomotive speaker
8210088 item available Uintah Mallet steam locomotive speaker
8210098 item available Saxonian I K steam locomotive speaker
8210099 item available Saxonian II K steam locomotive
8210110 item available 99 5901 HSB Mallet steam locomotive speaker
8210120 item available Fiffi + Pfiffi HSB steam locomotive speaker
8210200 item available G 4/5 RhB steam locomotive speaker
8210210 item available G 3/4 RhB Rhätia steam locomotive speaker
8210300 item available US Steam locomotive, Shay speaker
8210310 item available US Steam locomotive, K27/K28
8210500 item available BR 01 / 03 / 012 steam locomotive speaker
8210510 item available BR 80 steam locomotive speaker
8210520 item available SNCF Mikado steam locomotive speaker
8210530 item available BR 64 steam locomotive speaker
8210540 item available BR 24 steam locomotive
8210800 item available 99 4633 RüKB Rügen steam locomotive speaker
Diesel Locomotives
8220041 item available Tm 2/2 15ff RhB diesel tractor speaker
8220049 item available US diesel Locomotive GE P42 Genesis, AMD 103 speaker
8220051 item available V51 Rügen / V52 DB diesel locomotive speaker
8220052 Item Available 2091 ÖBB diesel locomotive speaker
8220055 item available US diesel locomotive, ALCO DL535E speaker
8220057 item available US diesel locomotive, EMD F7A/B speaker
8220059 item available HF 130 diesel locomotive speaker
8220063 item available LGB US diesel switcher
8220066 item available VT133 Anteater rail bus speaker
8220090 item available Köf diesel switcher speaker
8220091 item available Industrial field railway diesel switcher speaker
8220093 item available 199 012 HSB Köf diesel switcher speaker
8220096 item available 2095 ÖBB diesel locomotive speaker
8220110 item available T3 diesel rail car speaker
8220120 item available V3 diesel locomotive speaker
8220130 item available T1 diesel rail car
8220300 item available US diesel locomotive, EMD GP9
8220500 item available V200 (BR 220) BoBo big diesel locomotive speaker
8220510 item available V160 (BR 218) DB diesel locomotive speaker
8220520 item available VT98 rail car speaker
8220530 item available V60 diesel locomotive speaker
8220540 item available VW Bulli
8220550 item available V100 (BR 199 - BR 204) Harzkamel diesel locomotive speaker
8220560 item available Köf DB diesel switcher speaker
8220570 item available VT11.5 TEE DB diesel speaker
8220580 item available X5800 diesel rail bus
8220590 item available T478 diesel locomotive
8220600 item available V36 diesel locomotive
8220610 item available BR 132 Ludmilla
Electric Locomotives
8230022 item available ABe 8/12 RhB Allegra speaker

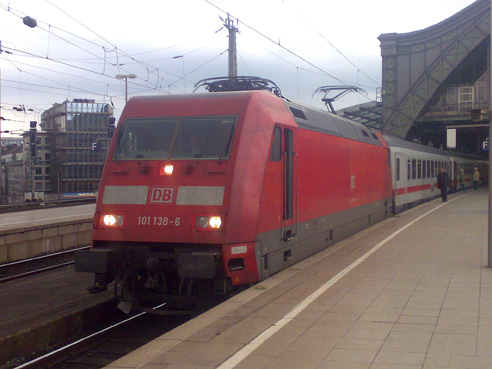

8230031 item available BR 101 DB speaker
8230035 item available Historic street car, (Darmstadt -Germany) speaker
8230038 item available New Orleans street car speaker
8230039 item available ABe 4/4 RhB rail car speaker
8230040 item available Ge 6/6 I RhB Crocodile speaker
8230042 item available Ge 4/4 III RhB
8230043 item available Ge 4/4 II RhB speaker
8230045 item available Ge 2/4 RhB speaker
8230075 item available E 10 (BR 110) DB Electric Locomotive speaker
8230200 item available Ge 6/6 II RhB speaker
8230210 item available Gem 4/4 I RhB speaker
8230220 item available Ge 4/4 RhB speaker
8230230 item available Ge 4/4 RhB Bernina Crocodile speaker
8230250 item available Ge 4/4 III MOB
8230260 item available Ge 4/4 III (incl. 100 Year Albula jubilee sound) speaker
8230510 item available BR 182 Taurus speaker
8230530 item available BR 194 (E 194) DB Crocodile speaker
