Massoth eMOTION XLS-M1 Sound Decoder

Product number: 82x5xxx
$229.00 plus shipping

In stock for immediate delivery
Please contact us to order

eMotion XLS-M1 Sound Decoder

The Massoth eMOTION XLS-M1 decoder is a powerful 4.5Amps driving, function, and sound decoder designed for installation in G scale locomotives equipped with the Märklin-LGB 28-pin decoder interface. The decoder plugs directly into the Märklin-LGB 28-pin decoder interface board.

The XLS-M1 decoder features selectable 14/28/128 speed steps, 3 light outputs, 8 function outputs, 2 contacts inputs, analog and digital operation, adjustable load control for digital and analog operation, overload-overheat protection for motor and function outputs, and a SUSI-MTB(Märklin Train Bus) interface. the XLS-M1 decoder supports 16 addressable functions in standard mode and 28 addressable functions in conjunction with the SUSI-MTB interface.

The Massoth eMOTION XLS-M1 decoder is fully compatible with NMRA/DCC, and compatible with all generations of the LGB® MTS system including serial and parallel control.

The XLS- M1 features features an integrated 2-watt high performance sound amplifier with 6 independent sound channels. The decoder holds a little over 3 minutes of high quality digital sound. It stores a locomotive's prototypical operating sounds as well as an array of additional sounds that may be configured to suit individual tastes. The integrated digital power amplifier reproduces all sounds and side noises of a locomotive authentically.

Operating the XLS-M1 decoder with an additional power buffer increases its dependability: brief track power disruptions are bridged in analog and digital operation and contaminated tracks and switch frogs are negotiated without any speed changes or interruptions.


Summary of Features:

  • Total amperage: 4.5Amps
  • Motor amperage: 3.5Amps
  • Light and function outputs amperage: 1.3Amps
  • Compatible with NMRA DCC and all generations of LGB® MTS systems
  • Serial and parallel control of all lights and function outputs, including LBG® P-sound updates
  • Digital and analog operation with automatic recognition
  • 10239 Locomotive addresses
  • 14/28/128 speed steps
  • 256 internal speed steps
  • Programmable speed curve
  • Adjustable starting, middle, and maximum speed
  • Adjustable acceleration and deceleration time
  • Adjustable motor frequency (60Hz-16kHz)
  • Latest load control technology, Back-EMF, analog and digital
  • Switching speed activated with mappable function key
  • 3 light outputs, 3 x 600mAmps (front, interior, and rear)
  • 8 function outputs, 6 x 300mAmps(A1-A6), 2 x 10mAmps(A7-A8
  • 2 reed contact inputs
  • Connection for power buffer
  • Connection for pulse generation function
  • RC servo control channel
  • SUSI-MTB interface
  • Light and function outputs dimmable; can be activated in analog operation
  • Programmable blinking lights, short-duration function, and pulse generator function
  • Easy to use function mapping
  • Free command allocation of all function outputs (F1-F16)
  • Reset function for all CV values
  • Overload protection for function outputs
  • Overheat protection for function outputs
  • CV-read
  • CV-write
  • CV-write (bit by bit)
  • CV indirect programming - register programming for old digital system
  • CV direct register programming (CV1-CV4)
  • Programming-on-Main (POM)
  • Sounds and firmware updatable

Sound Features:

  • 2-watt hi-performance amplifier for 8 Ohms speaker
  • 6 channel play-back (6 sounds at the same time)
  • Memory capacity for max. 200 sec. of recorded sound
  • play-back frequency: 10Hz - 16KHz
  • Volume control by potentiometer or CV programming (also individual sounds)
  • Sound functions usable in analogue mode

Technical specifications

  • Power supply: 0-24 Volts DC/DCC
  • Maximum total load: 4.0Amps
  • Motor output: Max. 3.5Amps, 60Hz-16kHz, load controlled, digital and analog
  • Light outputs: Max.(3 X 300mAmps) 22V dimmable
  • Function outputs:(6 X 300mAmps) max. 22V, (2 X 10mA) max. 5V
  • Total light and function outputs combined: Max. 1.3Amps
  • Loudspeaker 8 Ohms (Min. 1.5 watts)
  • Temperature range: -4°F to 113°F
  • Dimensions: 48x32x18mm

Scope of Delivery

  • eMOTION XLS-M1 Decoder
  • One Loudspeaker (see listing below)
  • User's Manual

Adobe Thumbnail
User's manual

Adobe Thumbnail
Configuration manual

Adobe Thumbnail
Recommended loudspeaker

Massoth eMOTION XLS Decoder sound options

XLS-M1 decoders are available with the locomotive sounds listed below.

To view the sound data sheet for a specific decoder, click on the corresponding reference number. To view the picture of the prototype locomotive, click on the locomotive's name. To listen to a sample of how the decoder reproduces the sounds of a specific locomotive, click on the corresponding speaker icon. The music you hear in the background of the sample is for copy protection only; you will not hear it when listening to an actual decoder.

Availability status legend
not in production Not in production, not available
New Item, available shortly New Item, available shortly
available Available, in stock
available Available, in very short supply
not available Currently unavailable, out of stock

Reference Number Availability Status Prototype Locomotive's Name and Picture MP3
Steam Locomotives
8215018 item available Franzburg steam locomotive
8215025 item available US Steam Locomotive Forney/Columbus speaker
8215026 item available HF 110 Rail Nicki & Frank S steam locomotive speaker
8215074 item available 1C 99-5633 Spreewald steam locomotive speaker

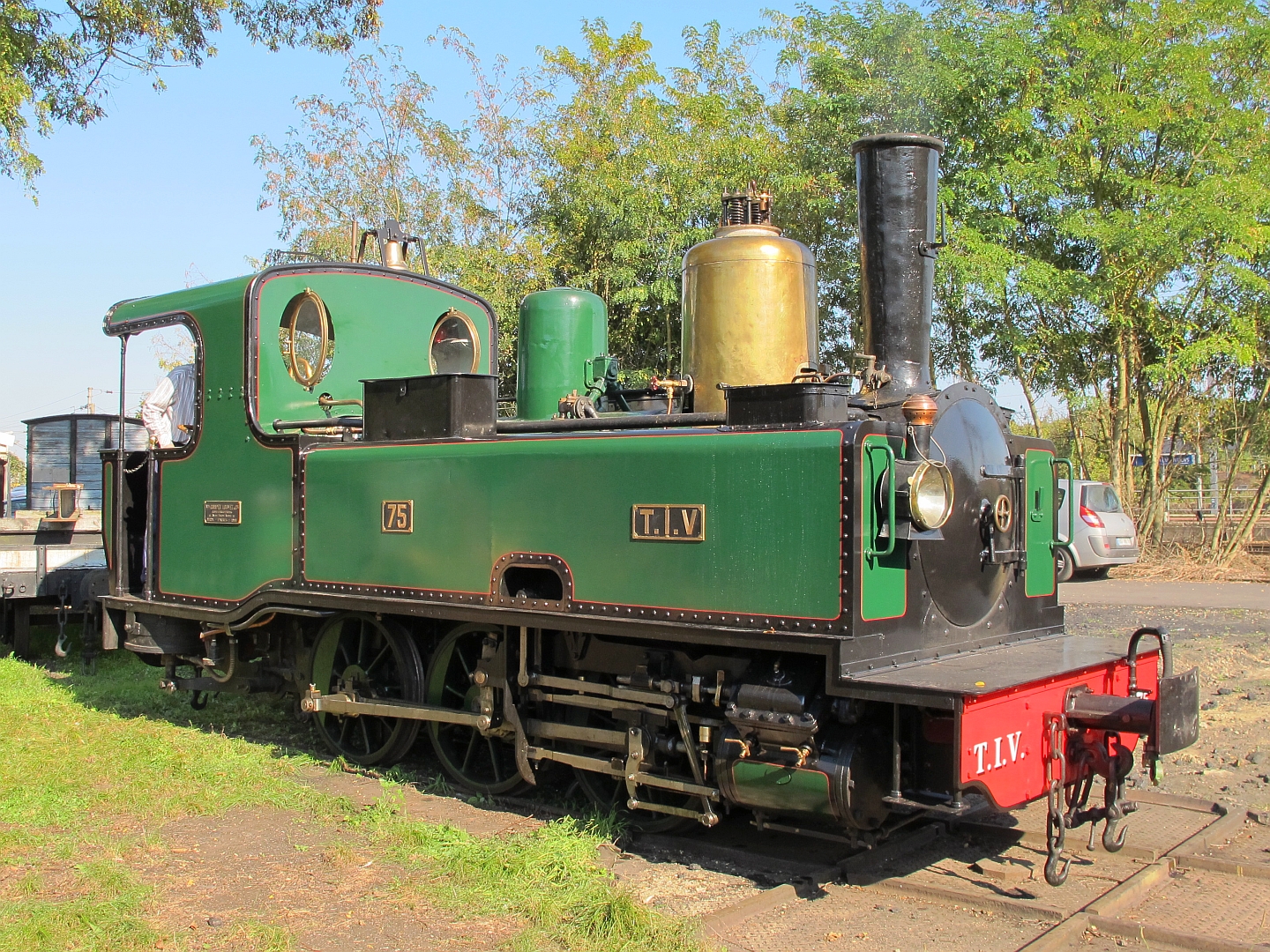

8215078 item available Corpet-Louvet
8215084 item available Saxonian IV K Steam Locomotive speaker
8215098 item available Saxonian I K steam locomotive speaker

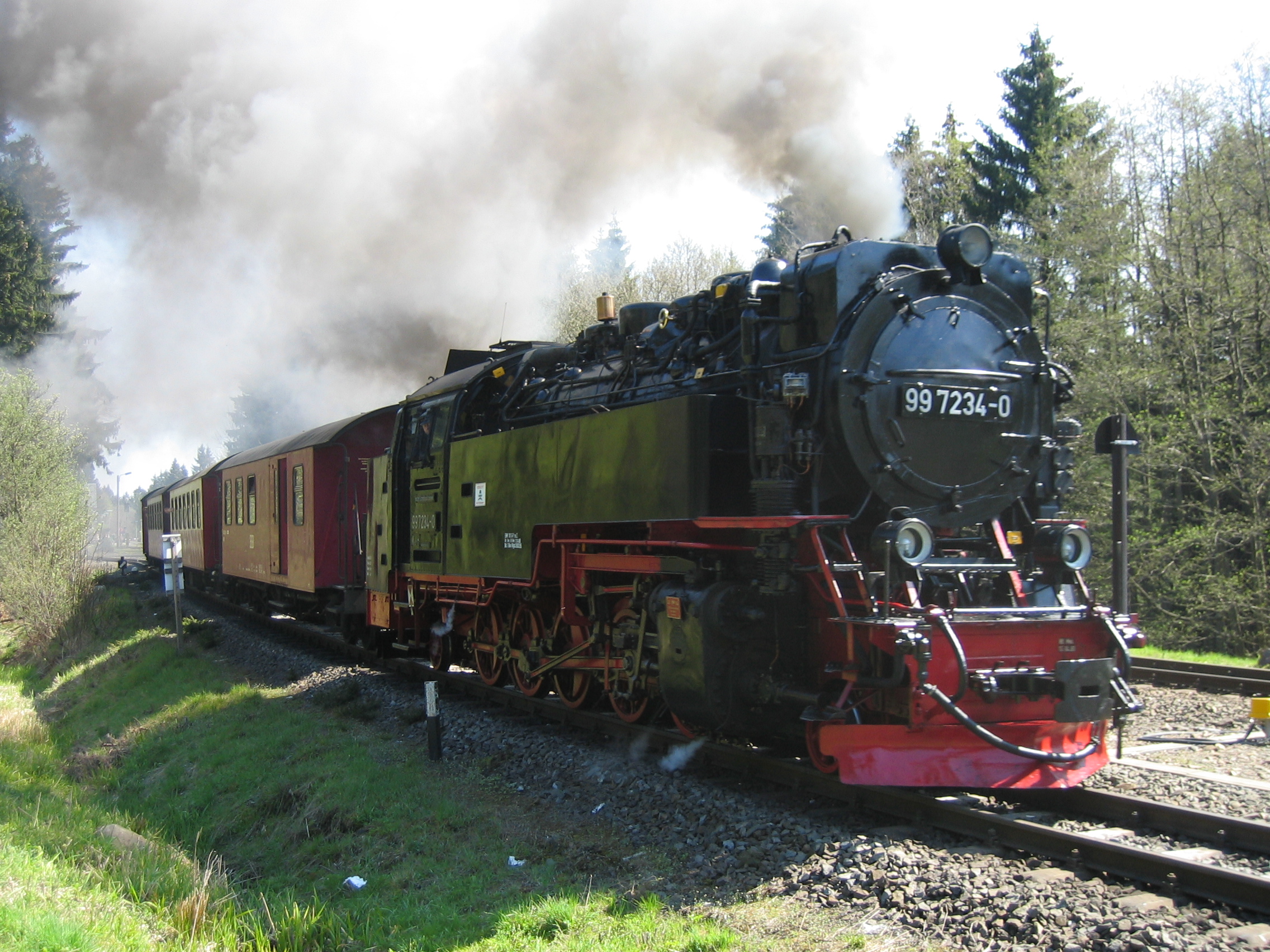

8215130 item available 1E1 99-7234 HSB Harzbulle
8215210 item available G 3/4 RhB Rhätia steam locomotive
Diesel Locomotives
8225041 item available Tm 2/2 15ff RhB diesel tractor speaker
8225500 item available V200 (BR 220) BoBo big diesel locomotive speaker
8225560 item available Köf DB diesel switcher speaker
Electric Locomotives
8235022 item available ABe 8/12 RhB Allegra speaker
8235038 item available New Orleans street car speaker
8235042 item available Ge 4/4 III RhB speaker
8235043 item available Ge 4/4 II RhB speaker
8235045 item available Ge 2/4 RhB speaker
8235075 item available E 10 (BR 110) DB Electric Locomotive speaker
8235250 item available Ge 4/4 III MOB
