Massoth Product List Massoth Pulsed Smoke Generators


Massoth High Performance Pulsed Smoke Generators

Product No.: 8413501 - Pulsed Smoke Generator for DCC
Product No.: 8413101 - Pulsed Smoke Generator for Analog Operation

$106.90 plus shipping

In stock for immediate delivery
Please contact us to order

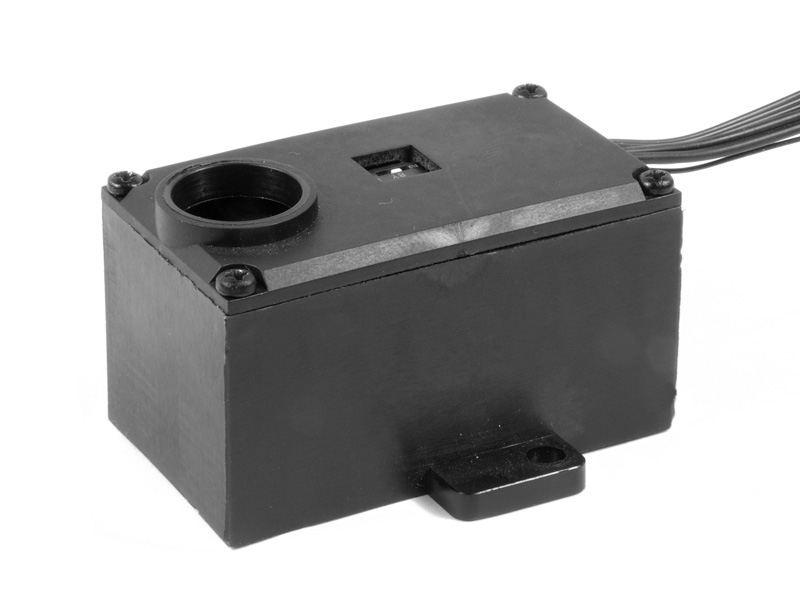

Massoth Pulsed Smoke Generator DCC - HP

The Massoth high performance pulsed smoke generator may be retrofitted in most G scale steam or diesel locomotives. It is powered through a direct connection to the track. It draws very little current (0.2 - 0.5 Amps) and produces a remarkable amount of smoke.

The smoke generator may be operated in either diesel or steam mode by setting a DIP-switch. In diesel model, the smoke generator produces a steady stream of smoke. In steam mode, the smoke generator produces puffs of smoke that are synchronized with the rotation of the locomotive's wheels. The synchronizing pulse may be generated by a wheel operated pulse generator or by the simulated pulse generator of a Massoth eMOTION decoder.

Two versions are the smoke generator are available, one for analog operation and the other for DCC operation. The Massoth Pulsed Smoke Generator for Analog Operation is suitable for DC operations. The Massoth Pulsed Smoke Generator for DCC is designed for installation in locomotives already equipped with a DCC decoder. Read more ...

Massoth Pulsed Smoke Generator for Round Boilers

Product No.: 8415001 - Pulsed Smoke Generator for Round Boilers
$106.90 plus shipping

In stock for immediate delivery
Please contact us to order

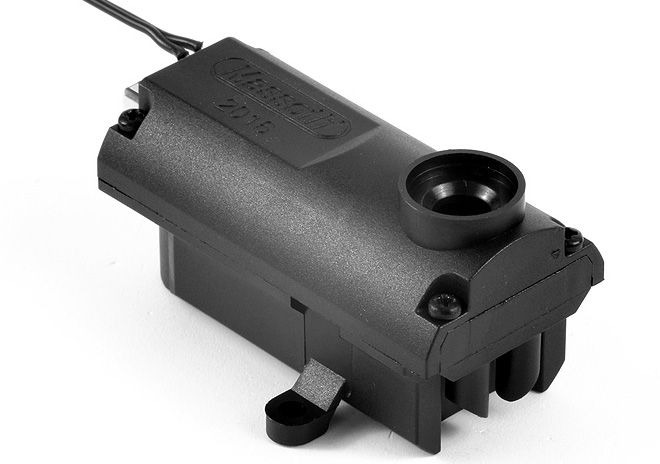

Massoth Pulsed Smoke Generator Round Boilers

The Massoth pulsed smoke generator for round boilers may be retrofitted in most G scale steam locomotives. It combines pulsed steam and cylinder steam functionality in a single unit. With an outer diameter of only 30mm, the unit can be easily installed in smaller G scale locomotives such as the LGB Stainz and Franzburg.

The Massoth Pulsed Smoke Generator for Round Boilers connects directly to track power and operates with DCC speed steps, hall-effect sensor, or clock signal from a decoder. With a newly designed fan and optimized airflow this smoke unit makes more smoke than ever. Overheating and dry-run protection are integrated.

The pulsed smoke generator is equipped with a fully integrated decoder that features a standard loco address and a separate programming address.
Read more ...

Cylinder Steam Module for Pulsed Smoke Generators

Product number: 8413901
$24.90 plus shipping

In stock for immediate delivery
Please contact us to order

Massoth Cylinder Steam Module

The Massoth Cylinder steam module adds a cylinder steam feature to Massoth pulsed smoke generators with firmware version ≥ 3.0 (product #8413501 and #8413101).

Scope of Delivery
  • Cylinder steam attachment
  • 50cm Ø6mm O.D. clear tubing
  • 10cm Ø8mm O.D. clear tubing
  • User's Manual

Adobe Thumbnail
User's manual

Hose Kit for Pulsed Smoke Generators

Product number: 8412901
$9.90 plus shipping

In stock for immediate delivery
Please contact us to order

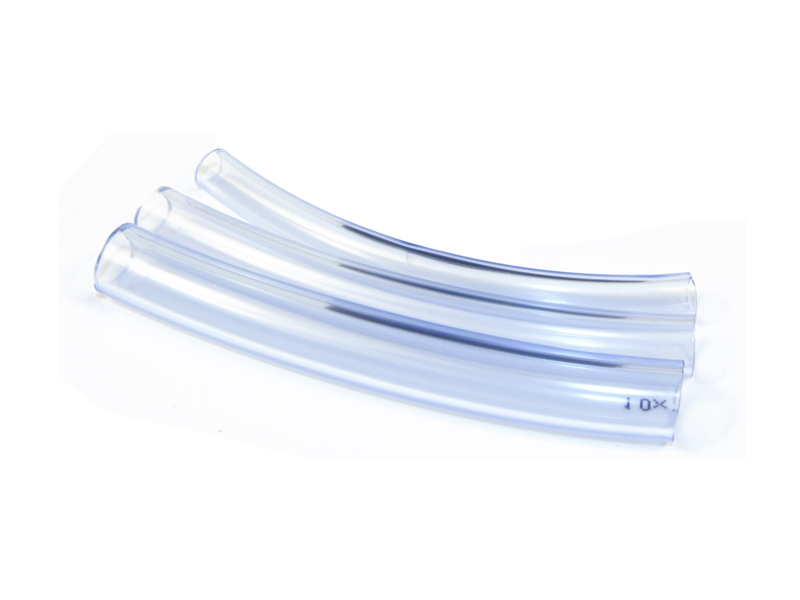

Massoth Hose Kit for pulsed Smoke Generators

The kit consist of three 10cm pieces of clear tubing with 13, 10, and 8mm O.D. and 9, 7 and 5 mm I.D., respectively. These pieces of clear tubing may be used to connect a pulsed smoke generator to a smoke stack or an exhaust pipe

Heating Element for Pulsed Smoke Generators, Analog

Product number: 8413109
$29.90 plus shipping

In stock for immediate delivery
Please contact us to order

Massoth Heating Element, Analog

This heating element may be used as a replacement in Massoth's pulsed smoke generator for analog operation (product #8413101).

Heating Element for High Performance Pulsed Smoke Generators, 19V & DCC

Product number: 8412208
$29.90 plus shipping

In stock for immediate delivery
Please contact us to order

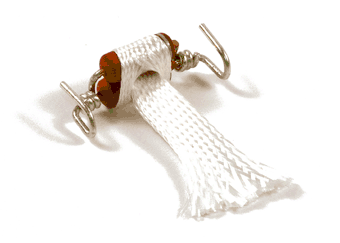

Massoth Heating Element, 19V and DCC - HP

This heating element may be used as a replacement in Massoth's High performance pulsed smoke generator 19V (product # 8412401) and in Massoth's High performance pulsed smoke generator for DCC (product # 8413501).

Massoth Smoke and Cleaning Fluid, 250ml

Product number: 8412501
$18.90 plus shipping

In stock for immediate delivery
Please contact us to order

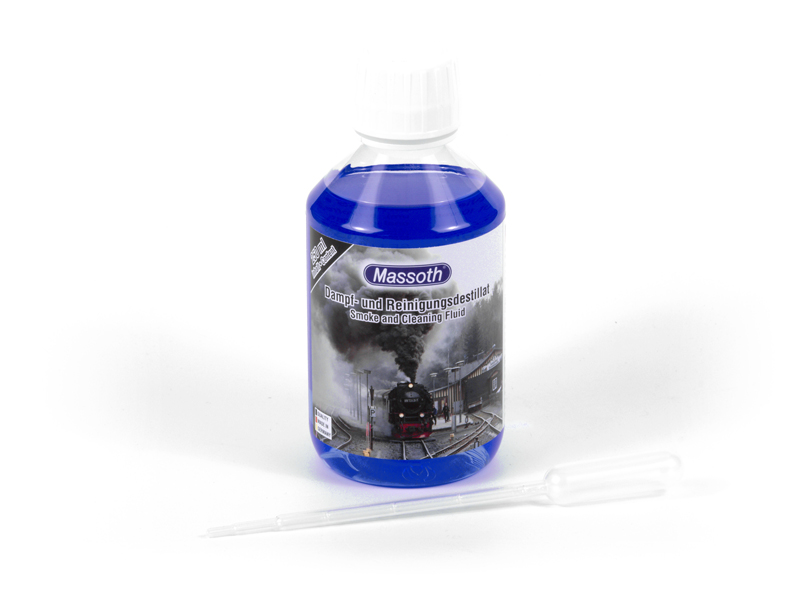

Massoth Smoke and Cleaning Fluid

Massoth's odorless and non-staining smoke and cleaning fluid is recommended for all Massoth and LGB® smoke generators. It is safe for all LGB® paints and plastics and can be used to clean LGB® trains and tracks. It is a smart replacement for the no-longer-available LGB® 50010 Smoke Fluid (250ml, plastic pipette included).
