Massoth Product List → Massoth Sound Decoders

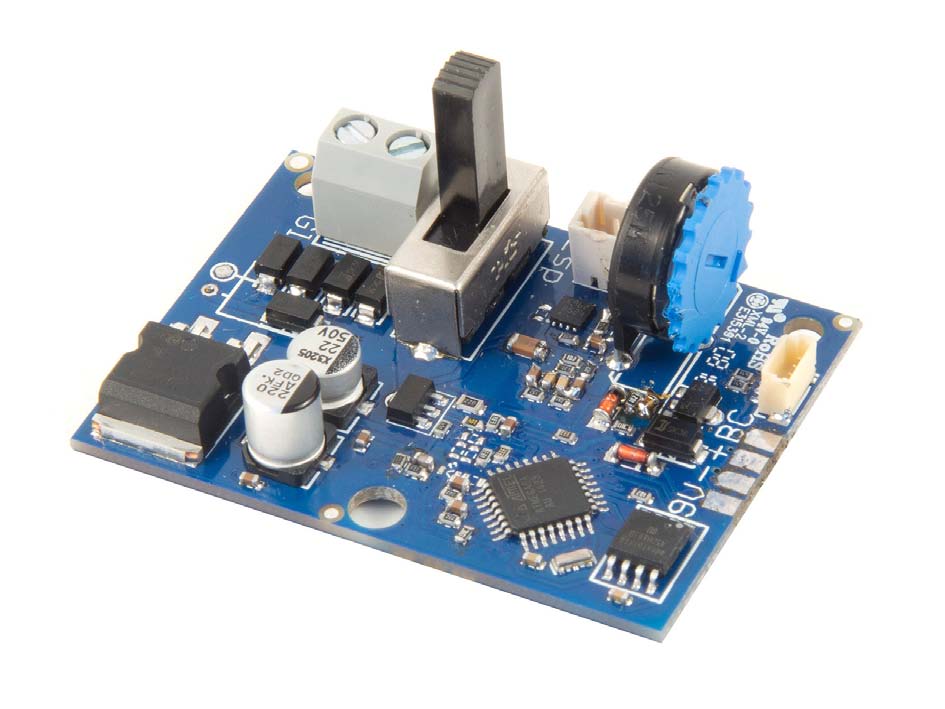

Massoth eMOTION Melody Module
Product number: 8293001
$85.00 plus shipping
Please contact us to order
In stock
The Massoth Melody Module is a programmable sound module that may be used on a model train layout to play sounds in locomotives, cars, or stationary structures; it can play up to 12 individual sounds.
The Massoth Melody Module is suitable for analog and digital operations. In digital mode, Individual sounds may be assigned to one of 28 function keys and played by pressing the assigned key; only one sound can be played at a time. Individual sounds may also be looped, activated, or deactivated permanently. In analog mode, the module plays a programmed sequence of individual sounds; the sequence starts automatically and repeats infinitely.
The Massoth Melody Module features 2 contact inputs that may be used in analog or digital mode to trigger individual sounds with track magnets or other switches.
Massoth eMOTION S Sound Decoder
Product number: 82x2xxx
$140.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION S sound decoder is small in size but big on features; it has the same sound features as the Massoth XLS sound decoder.
The S decoder features 3 output functions with overload - overheat protection, 3 contact inputs, a Massoth-SUSI interface, and a 3 watts integrated high-performance sound amplifier with 6 independent sound channels.
Especially designed for analog operation and for locomotives with existing decoders, it is suitable for either analog or digital operation and capable of detecting the operating mode automatically.

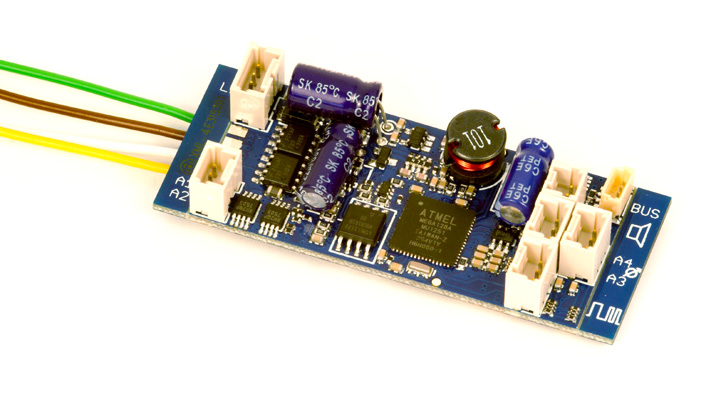

Massoth eMOTION LS Sound Decoder
Product number: 82x1xxx
165.00 plus shipping
Please contact us to order
In stock
The Massoth emotion LS decoder is a small 2.5Amps driving, function, and sound decoder designed for installation in G-scale locomotives equipped with a single motor.
The LS features a 1.9Amps output stage for a single motor, 3 light outputs, 6 function outputs, 3 contacts inputs, a Massoth-SUSI interface, and an integrated 2.4-watt class D sound amplifier with 6 independent sound channels.
The LS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.

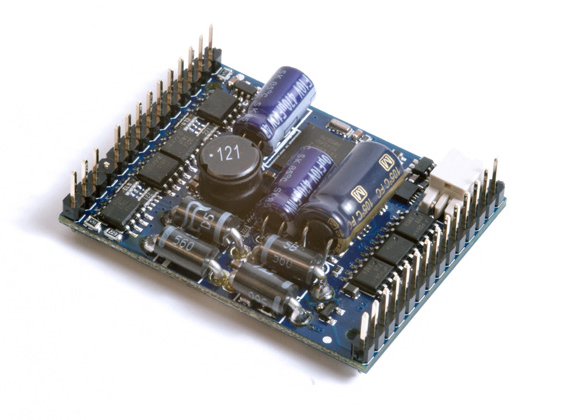

Massoth eMOTION XLS-M1 Sound Decoder
Product number: 82x5xxx
$190.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION XLS-M1 decoder is a powerful 4.5Amps driving, function, and sound decoder designed for installation in G scale locomotives equipped with the Märklin-LGB 28-pin decoder interface.
The XLS-M1 decoder features a 3.5Amps output stage for up to two motors, 3 light outputs, 8 function outputs, 2 contacts inputs, a SUSI-MTB(Märklin Train Bus) interface, and an integrated 2-watt high performance sound amplifier with 6 independent sound channels.
The XLS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.
The Massoth eMOTION XLS-M1 decoder is fully compatible with NMRA/DCC, and compatible with all generations of the LGB® MTS system including serial and parallel control.

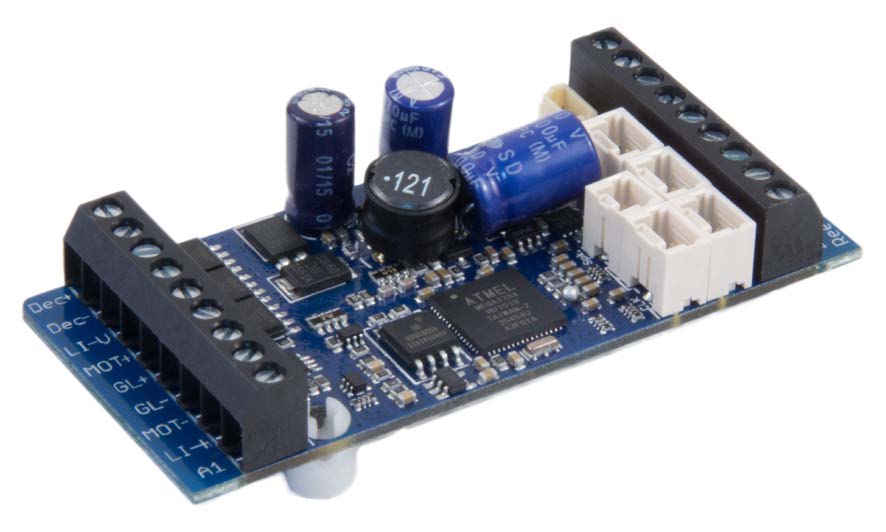

Massoth eMOTION XLS Sound Decoder
Product number: 82x0xxx
$190.00 plus shipping
Please contact us to order
In stock
The Massoth emotion XLS decoder is a powerful 4.0Amps driving, function, and sound decoder designed for installation in G-scale locomotives equipped with 1 or 2 driving motors. It is the quintessential decoder for G-scale model trains.
The XLS features a 3.5Amps output stage for up to two motors, 3 light outputs, 8 function outputs, 4 contacts inputs , a Massoth-SUSI interface, and an integrated 3-watt high performance sound amplifier with 6 independent sound channels.
The XLS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.

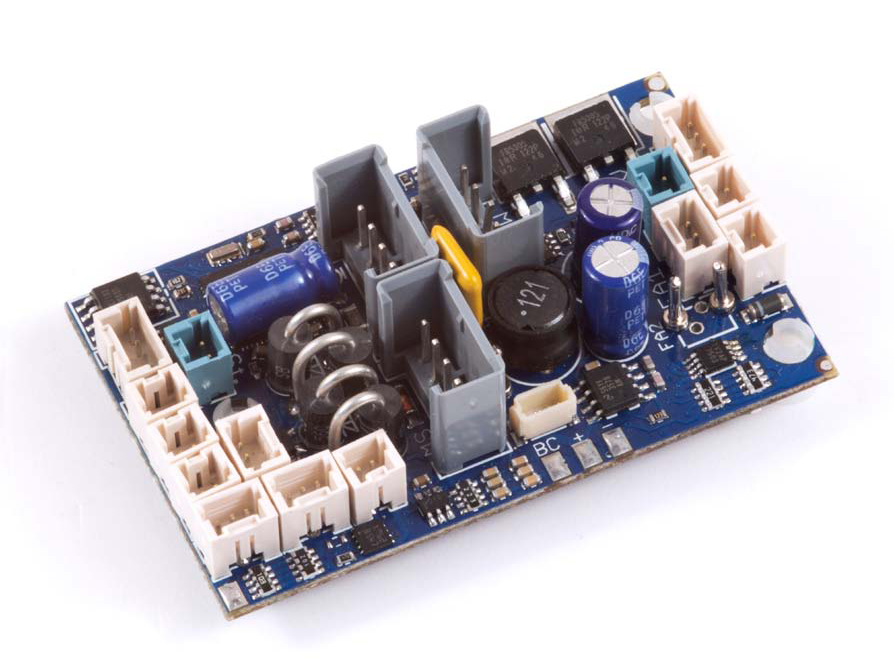

Massoth eMOTION XLS On-board Sound Decoder
Product number: 82x6xxx
$190.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION XLS on-board decoder is a powerful 4.0 Amps driving, function, and sound decoder designed for installation in LGB locomotives factory equipped with an LGB DCC Interface or an LGB On-board Decoder. Installation is plug and play, existing cables are unplugged from the factory installed PCB and plugged into the Massoth on-board decoder.
The XLS on-board decoder features a 3.5Amps output stage for up to two motors, 3 light outputs, 4 function outputs, 2 contacts inputs, a SUSI-MTB(Märklin Train Bus) interface, and an integrated 2.8 watt Class D sound amplifier with 6 independent sound channels.
The XLS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.
