Massoth Product List Massoth Radio Control


Massoth DiMAX 2.4GHz Receiver

Product number: 8131001
$149.90 plus shipping

Please contact us to order
Temporarily out of stock

Massoth  DiMAX 2.4GHz Receiver

The DiMAX 2.4GHz Receiver is a universal receiver that can be used world wide. It enables a Massoth central station, an LGB® MTS III central station, or a Piko central station to communicate wirelessly with up to 4 Massoth Navigators the same time. With a maximum of 2 receivers, a central station can communicate with up to 8 Navigators at the same time. The Massoth DiMAX 2.4GHz receiver has a range of approximately 300 feet.

2 activity LEDs report the operating status of the receiver at all times. Power for the receiver is provided by the digital bus.

The receiver is equipped with 2 connection sockets. One is used to connect the receiver to a DiMAX central station; the other may be used to connect the receiver to an LGB® 51070 throttle or a Piko® 35002 throttle for wireless analog operation using a Massoth Wireless Navigator.


Massoth DiMAX RC Receiver

Product number: 8132001
$129.90 plus shipping

Please contact us to order
Not available

Massoth  Dimax Receiver

The DiMAX RC Receiver enables a Massoth central station, an LGB® MTS III central station, or a Piko central station to communicate wirelessly with up to 8 Massoth wireless Navigators at the same time.

The DiMAX RC Receiver is based on the latest state-of-the-art bidirectional FM technology. To ensure operation without interferences from other devices, the receiver is equipped with an integrated set of DIP-switches that allow the user to select one of 4 radio frequencies for communication. The receiver has a range of approximately 300 feet. An activity LED reports the operating status of the receiver at all times. Power for the receiver is provided by the digital bus.

The DiMAX RC receiver is equipped with 2 connection sockets. One is used to connect the receiver to a DiMAX central station; the other may be used to connect the receiver to an LGB® 51070 throttle or a Piko® 35002 throttle for wireless analog operation using a Massoth Wireless Navigator.

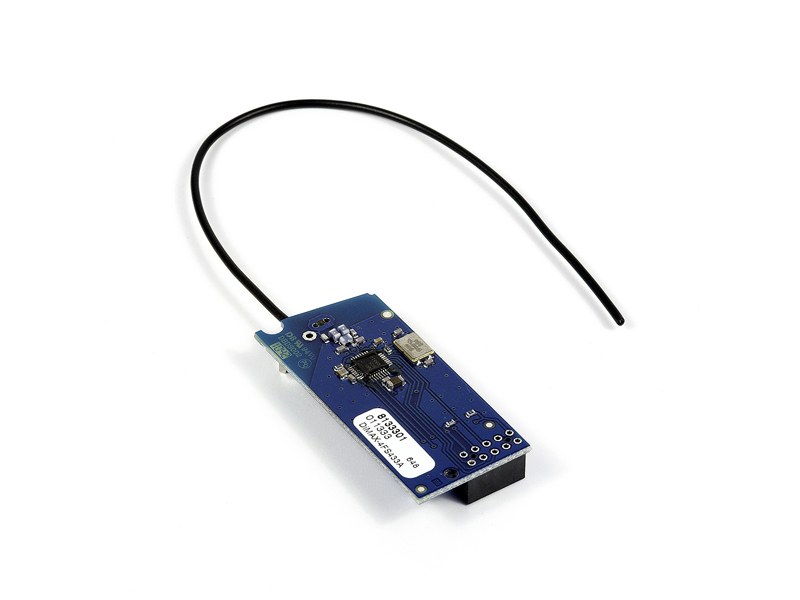

Massoth DiMAX RC Sender

Product number: 8132501
$89.90 plus shipping

Please contact us to order
In stock

Massoth Retrofit Transmitter

The DiMAX RC Sender allows bidirectional wireless communication between a Massoth DiMAX Navigator and the Massoth DiMAX Central station.

It may be used to retrofit a Massoth DiMAX Navigator without a factory installed RC sender. A small Phillips screwdriver and the most basic assembly skills are all that is needed to perform the task. There are no switches to set and no programming is required.


Massoth DiMAX Sender 2.4GHz

Product number: 8132901
$102.90 plus shipping

Please contact us to order
In stock

Massoth Transmitter 2.4GHz

The DiMAX 2.4GHz Sender allows bidirectional wireless communication between a Massoth DiMAX Navigator and the Massoth DiMAX Central station.

It may be used to retrofit older Massoth DiMAX Navigator equipped with an FM RC sender. A small Phillips screwdriver and the most basic assembly skills are all that is needed to perform the task. There are no switches to set and no programming is required.
