Massoth eMOTION S Sound Decoder

Product number: 82x2xxx
$140.00 plus shipping

Please contact us to order
In stock

eMotion S Sound Decoder

The Massoth eMOTION S sound decoder is small in size but big on features. It has the same sound features as the Massoth XLS sound decoder.

The S decoder features 3 output functions, 3 contact inputs, a Massoth-SUSI interface, and a 3 watts integrated high-performance sound amplifier with 6 independent sound channels.

Especially designed for analog operation, and for locomotives with existing decoders, it is suitable for either DC (analog) or DCC(digital )operation, and capable of detecting the operating mode automatically.

All sound features of the S decoder are available at the lowest possible voltage; a stabilized analog operation is guaranteed at 5 Volts.

The decoder holds a little over 3 minutes of high quality digital sound. It stores a locomotive's prototypical operating sounds as well as an array of additional sounds that may be configured to suit individual tastes. The decoder's full-fledged digital power amplifier reproduces all sounds and side noises of a locomotive authentically.

The eMOTION S sound decoder supports the full NMRA protocol, and is compatible with all generations of the LGB® MTS system.

The S decoder fits readily into and is suitable for any G-scale locomotive including those manufactured by Aristocraft, Accucraft, Bachmann, KISS, LGB, and USA-Trains.

Summary of Features:

  • Serial and parallel control of all lights and function outputs, including LBG® P-sound updates
  • Digital and analog operation with automatic recognition
  • Compatible with NMRA DCC and all generations of LGB® MTS systems
  • 3 function outputs, 1 x 50mAmps(A3), 2 X 10mAmps (A7-A8)
  • 10239 locomotive addresses
  • Separate programming address
  • Light and function outputs dimmable; can be activated in analog mode
  • Connection for optional power buffer
  • Connection for programmable pulse generation function
  • 2 Reed contact inputs
  • RC servo control channel
  • Massoth-SUSI interface
  • Easy to use function mapping
  • Free command allocation of all function outputs (F1-F16)
  • Rest function for all CV values
  • Overload protection for function outputs
  • Overheat protection for function outputs
  • 3 watts hi-performance amplifier for 8 Ohms speaker
  • 6 channel play-back (6 sounds at the same time)
  • Memory capacity for max. 200 sec. of recorded sound
  • 4 driving sounds, and 12 side noises, selectable
  • Play-back frequency: 16KHz
  • Volume control by potentiometer or CV programming (also individual sounds)
  • Sound functions usable in analogue mode
  • Sounds and firmware updatable

Features for Mallets, Rack Rail locomotives, and Dual Powered Locomotives: (1) The S Decoder has 2 separate inputs for synchronizing chuffs to wheel rotation in locomotives with two steam pistons like Mallets or steam rack rail Locomotives. (2) Starting with version 2.5, you can use CV 170 to define a function key which, when pressed, will activate/deactivate the rack noise on a steam rack rail engine, or switch the sound from electric to diesel and vice versa on a dual powered locomotive.

Technical specifications

  • Power supply: 0-24 Volts DC/DCC
  • Current: 30-300mAmps (depending on sound, without functions)
  • Maximum function current: 70mAmps (50mAmps[A3], 2x10mAmps[A7-A8])
  • Loudspeaker 8 Ohms (Min. 1.5 watts)
  • Temperature Range: -4°F to 113°F
  • Dimensions: 35x20x12mm

Scope of Supply

  • eMOTION S Decoder
  • One loudspeaker (see listing below)
  • SUSI interface cable
  • Double-sided Tape
  • User's Manual

Adobe Thumbnail
User's manual

Adobe Thumbnail
Configuration manual

Adobe Thumbnail
Recommended loudspeaker

Massoth eMOTION S Decoder sound options

The S decoders are programmed at the factory with one of 3 generic locomotive sounds: steam, diesel, or electric. The S decoder can also be programmed with any of the specific locomotive sounds listed below. We will gladly do the programming for you at no extra charge.

To view the sound data sheet for a specific decoder, click on the corresponding reference number. To view the picture of the prototype locomotive, click on the locomotive's name. To listen to a sample of how the decoder reproduces the sounds of a specific locomotive, click on the corresponding speaker icon.

The music you hear in the background of the sample is for copy protection only; you will not hear it when listening to an actual decoder.

Availability status legend
not in production Not in production, not available
New Item, available shortly New Item, available shortly
available Available, in stock
available Available, in very short supply
not available Currently unavailable, out of stock
Reference Number Availability Status Prototype Locomotive's Name and Picture MP3
Generic Locomotive Sounds
8212100 item available Small Steam Locomotive, Stainz speaker
8222100 item available Small Diesel Locomotive speaker
8232100 item available Small Electric locomotive (Street Car) speaker
Steam Locomotives

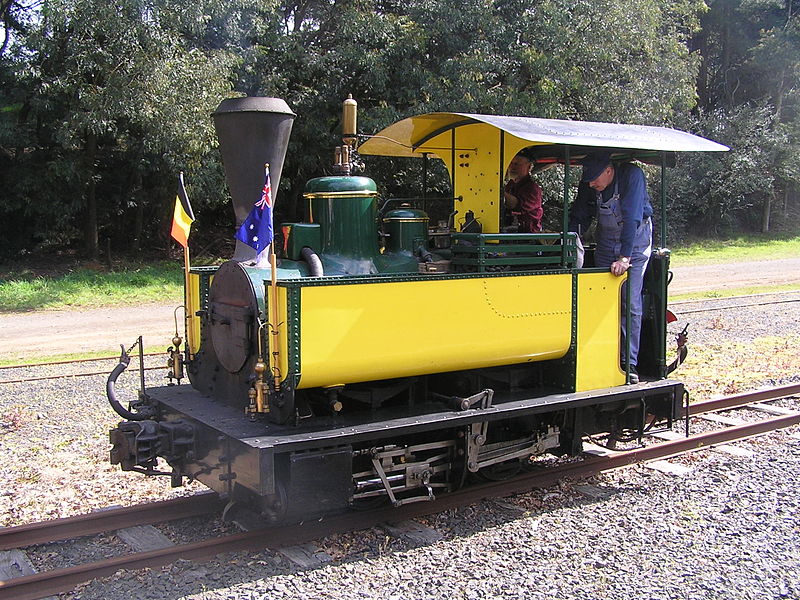

8212014 item available Industrial field railway steam locomotive speaker
8212015 item available Tender for steam locomotive
8212018 item available Franzburg steam locomotive

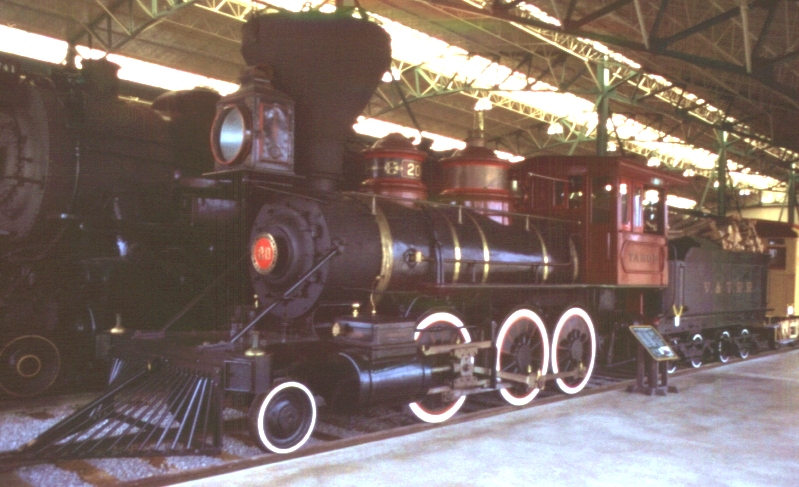

8212019 item available US steam locomotive, 2-6-0 Mogul speaker

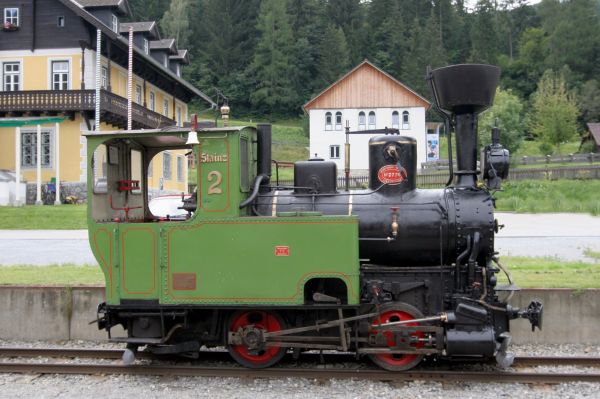

8212021 item available Stainz steam locomotive speaker
8212025 item available US steam locomotive Forney/Columbus speaker
8212026 item available HF 110 Rail Nicki & Frank S steam locomotive speaker
8212027 item available G 3/4 RhB Heidi steam locomotive speaker

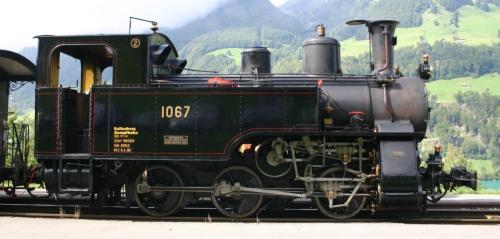

8212047 item available HG 3/3 Ballenburg cog wheel steam Locomotive speaker
8212050 item available Kastendampflok, Feuriger Elias steam locomotive speaker

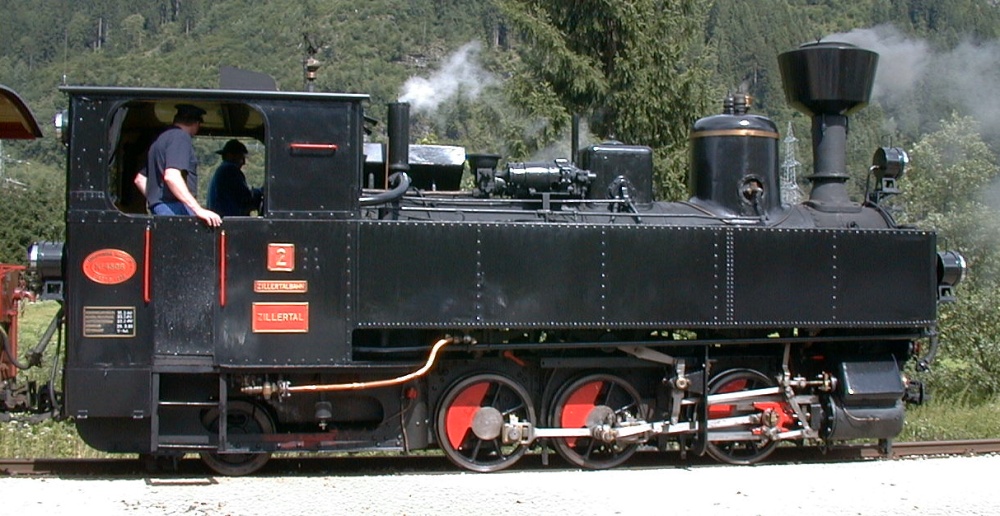

8212071 item available Baureihe U, Zillertalbahn steam locomotive speaker

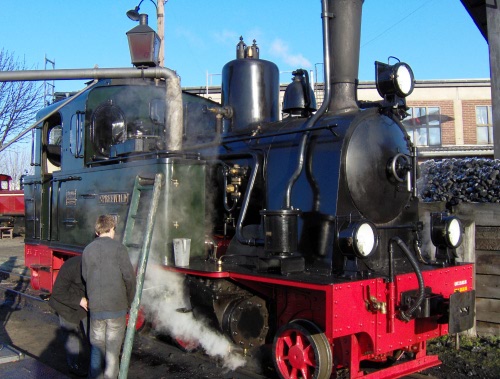

8212074 item available 1C 99-5633 Spreewald steam locomotive speaker
8212080 item available 1C1 99-6001 HSB 2-6-2 steam locomotive speaker

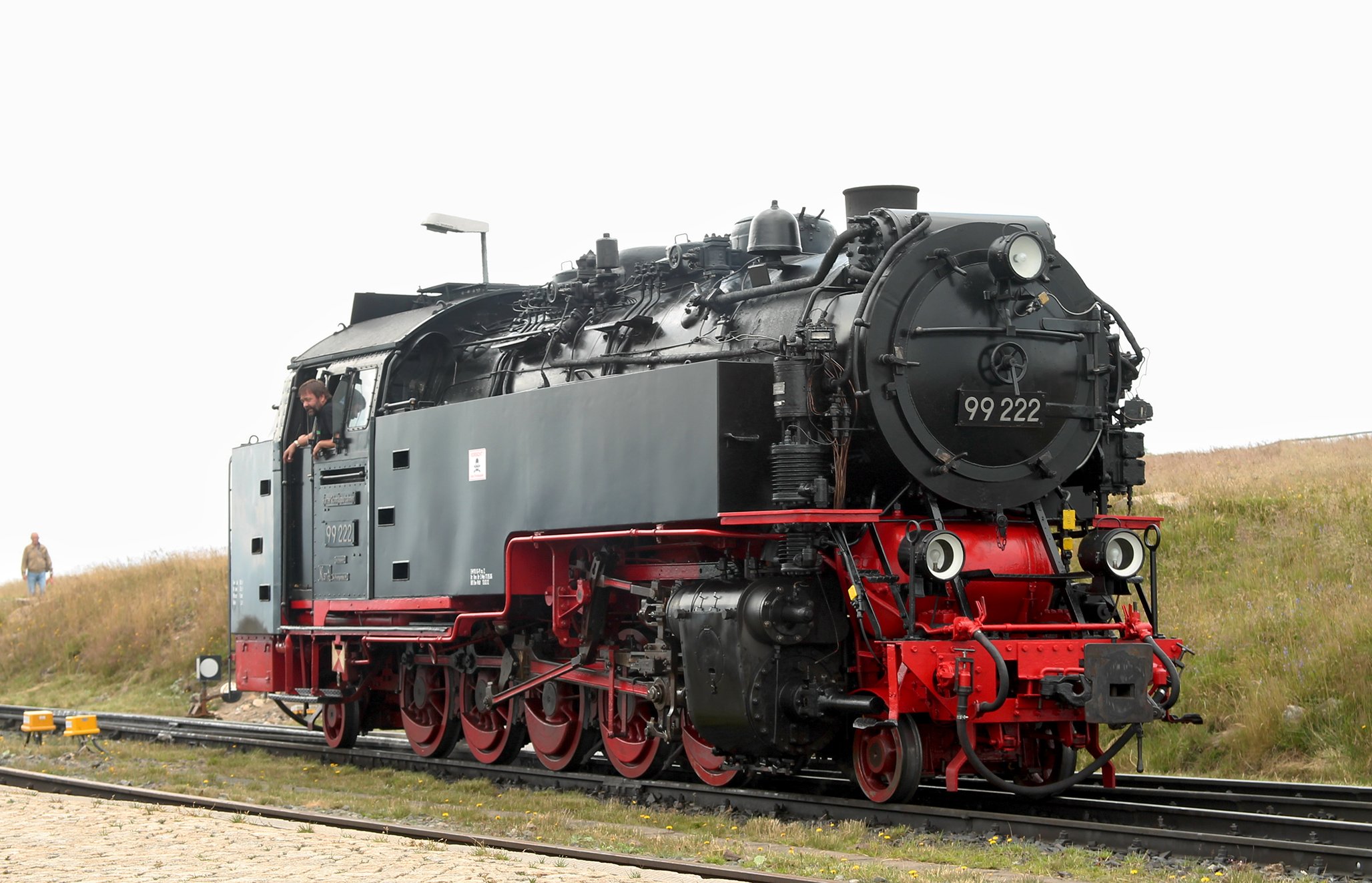

8212081 item available 1E1 99-222 HSB 2-10-2 steam locomotive speaker

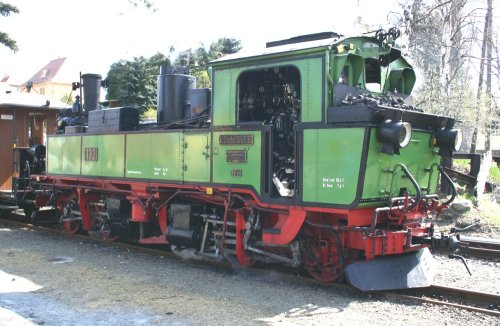

8212084 item available Saxonian IV K steam locomotive speaker

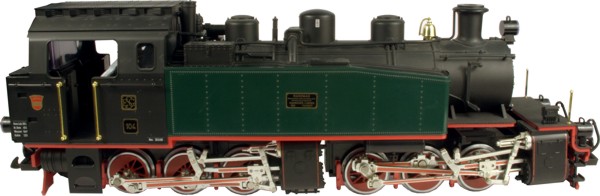

8212085 item available DR Mallet steam locomotive speaker
8212087 item available Mikado steam locomotive speaker
8212088 item available Uintah Mallet steam locomotive speaker

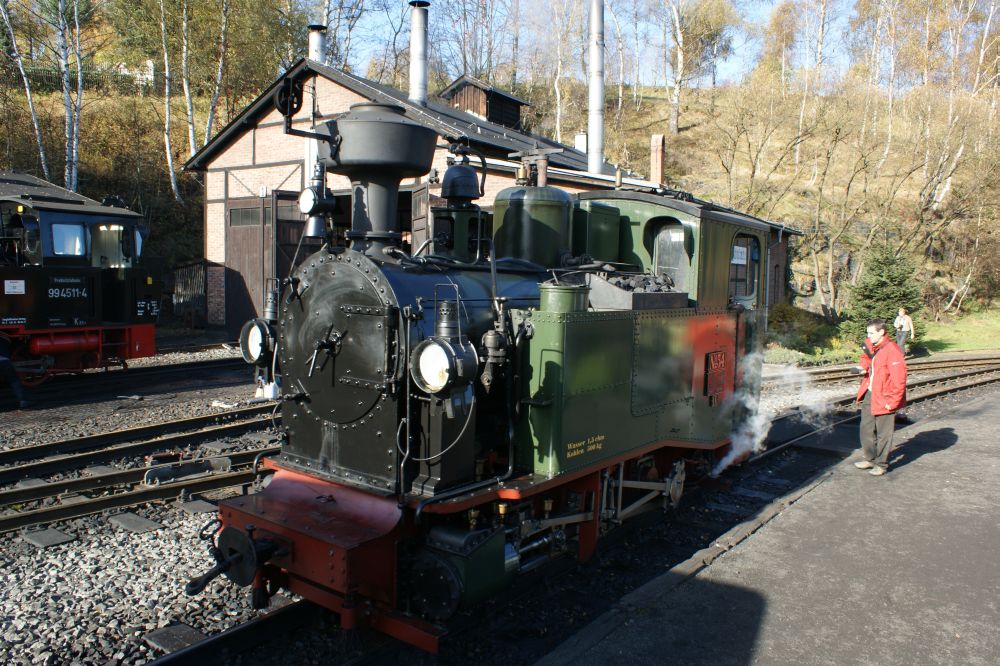

8212098 item available Saxonian I K steam locomotive speaker
8212099 item available Saxonian II K steam locomotive
8212110 item available 99 5901 HSB Mallet steam locomotive speaker

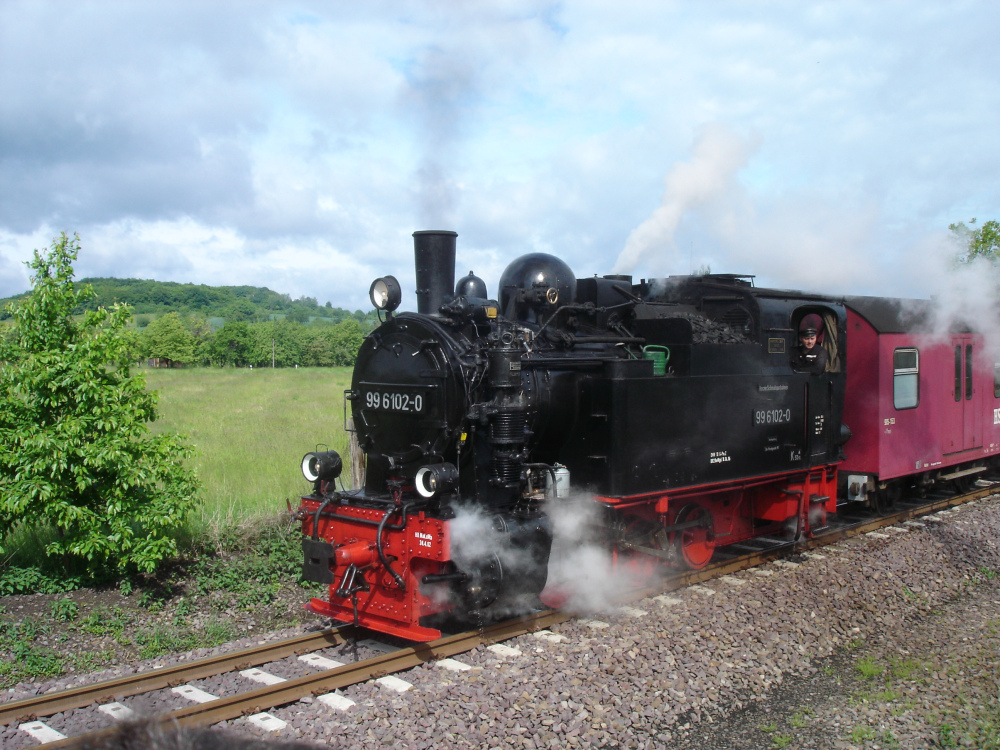

8212120 item available Fiffi + Pfiffi HSB steam locomotive speaker

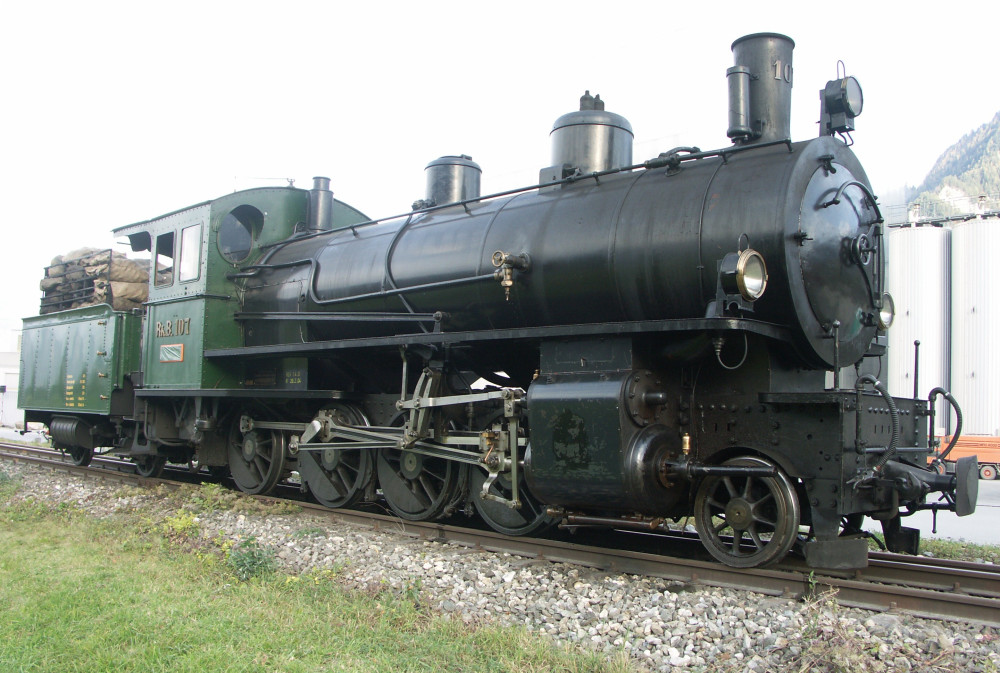

8212200 item available G 4/5 RhB steam locomotive speaker

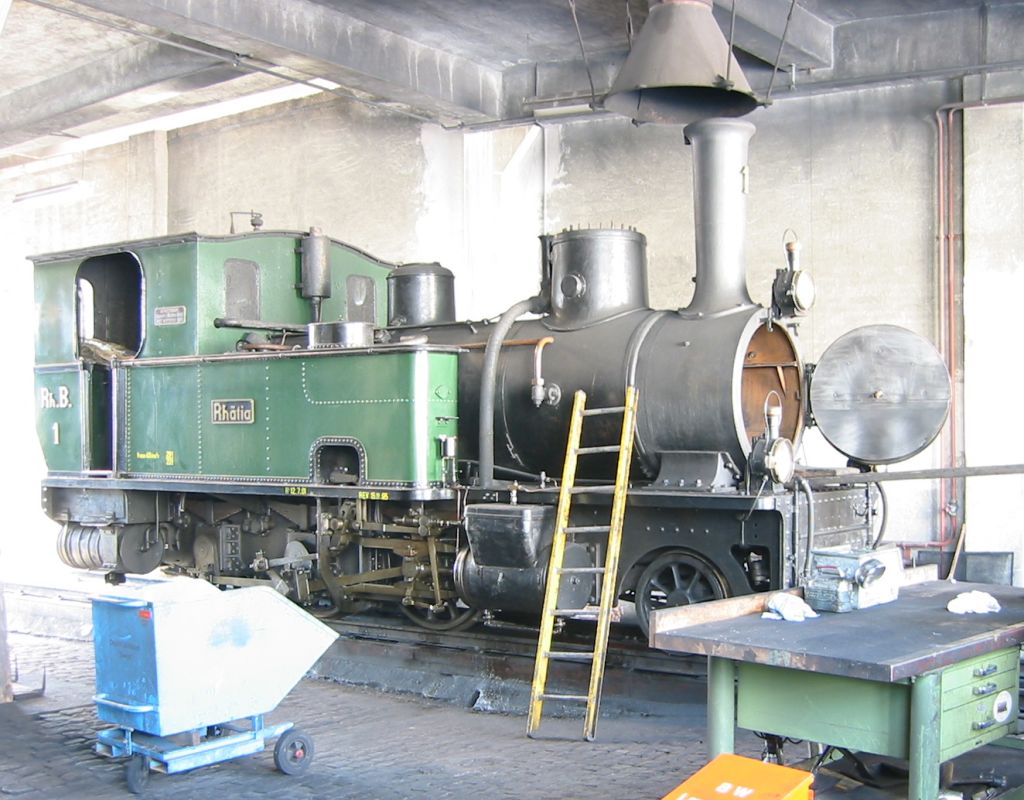

8212210 item available G 3/4 RhB Rhätia steam locomotive speaker
8212300 item available US Steam locomotive, Shay speaker
8212310 item available US Steam locomotive, K27/K28

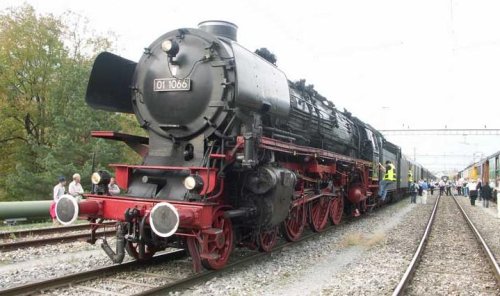

8212500 item available BR 01 / 03 / 012 steam locomotive speaker

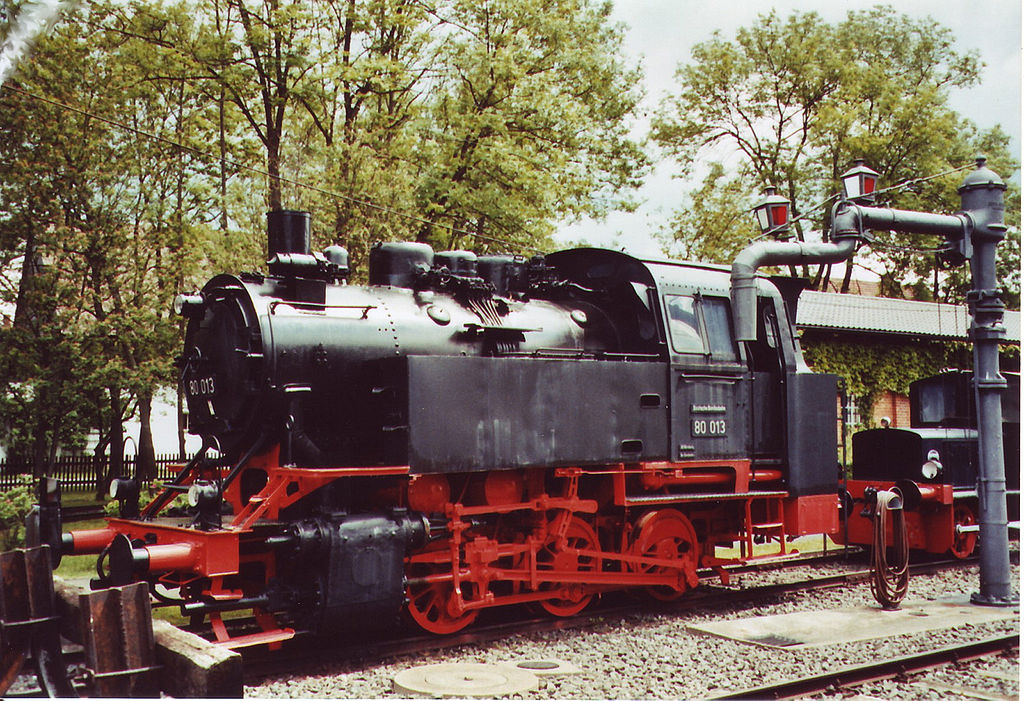

8212510 item available BR 80 steam locomotive speaker

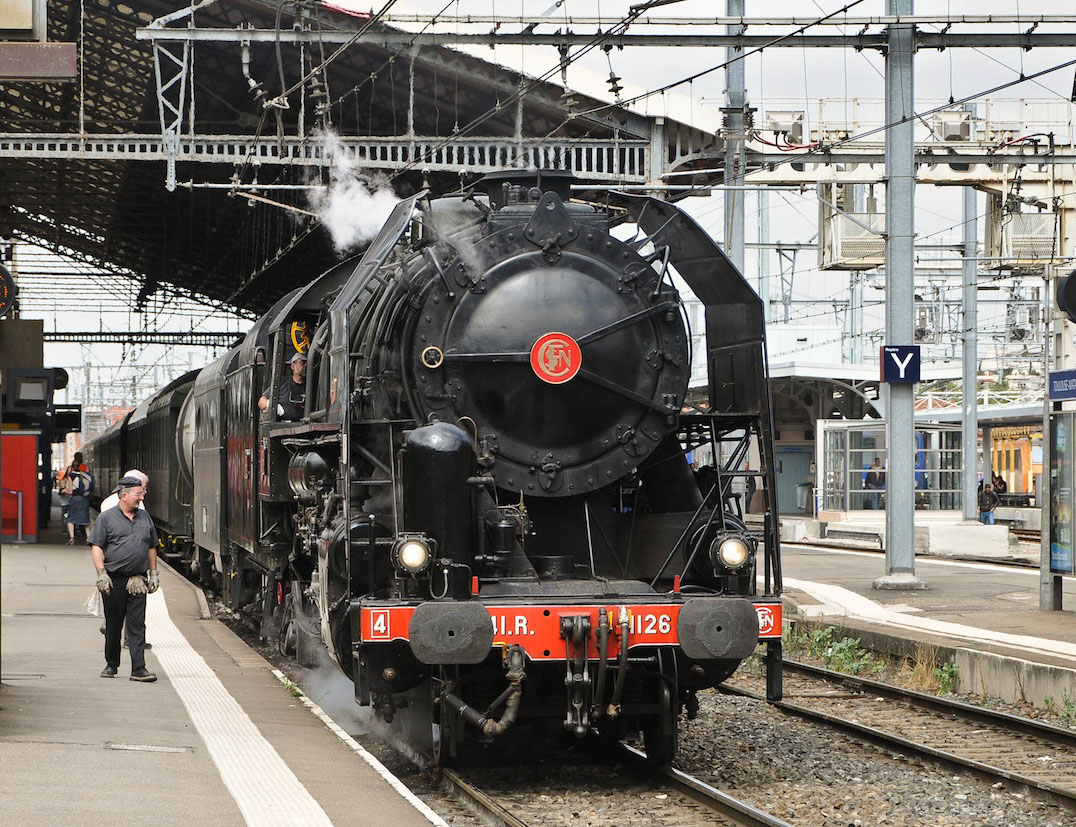

8212520 item available SNCF Mikado steam locomotive speaker
8212530 item available BR 64 steam locomotive speaker

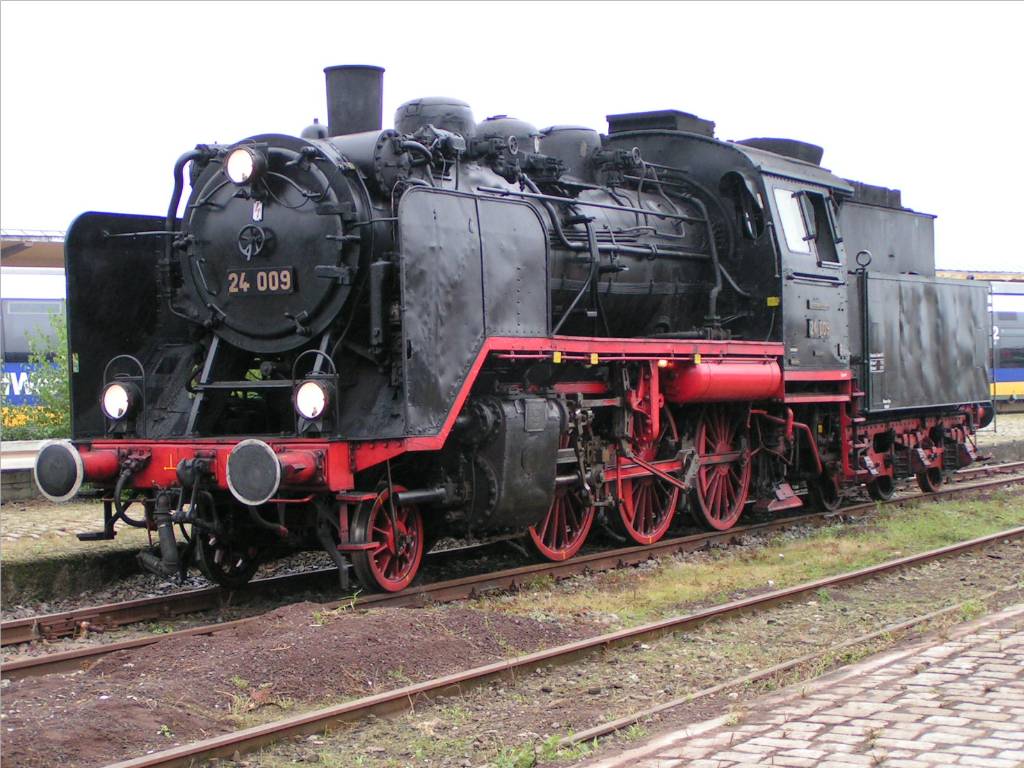

8212540 item available BR 24 steam locomotive

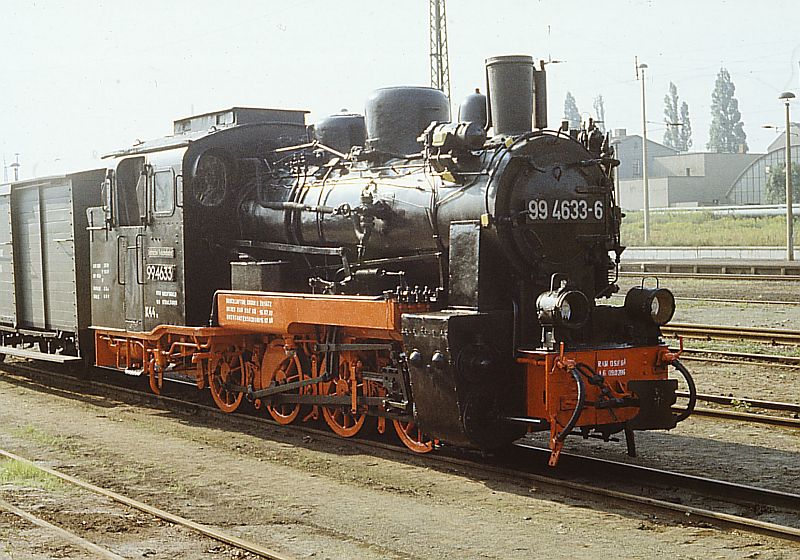

8212800 item available 99 4633 RüKB Rügen steam locomotive speaker
Diesel Locomotives

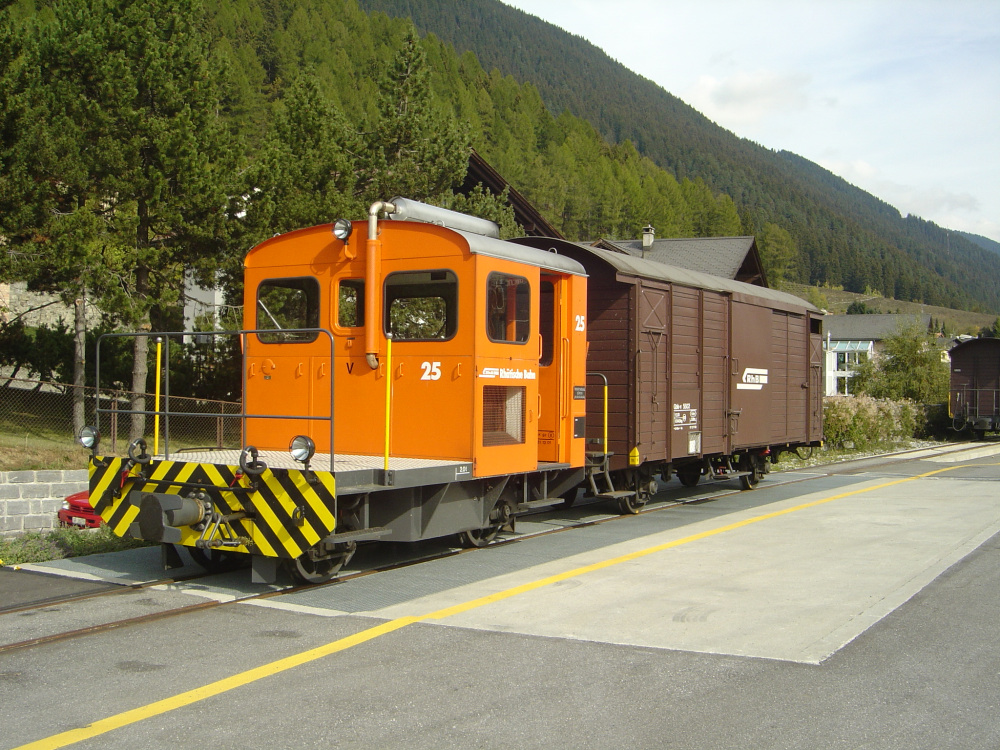

8222041 item available Tm 2/2 15ff RhB diesel tractor speaker
8222049 item available US diesel Locomotive GE P42 Genesis, AMD 103 speaker
8222051 item available V51 Rügen / V52 DB diesel locomotive speaker
8222052 Item Available 2091 ÖBB diesel locomotive speaker
8222055 item available US diesel locomotive, ALCO DL535E speaker
8222057 item available US diesel locomotive, EMD F7A/B speaker
8222059 item available HF 130 diesel locomotive speaker

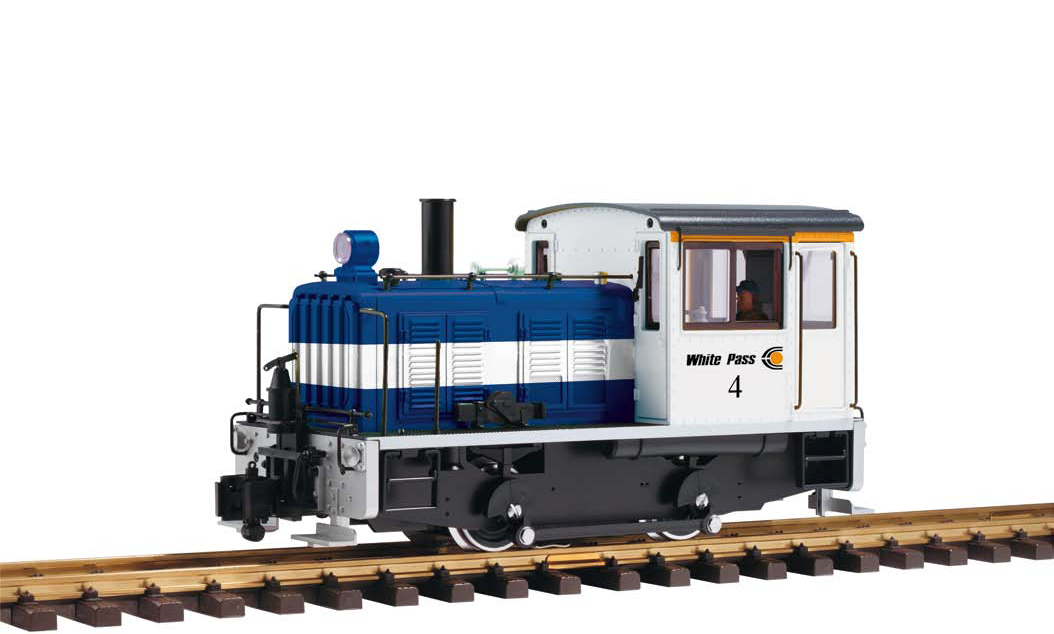

8222063 item available LGB US diesel switcher

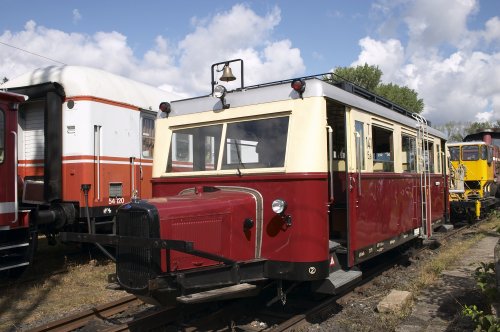

8222066 item available VT133 Anteater rail bus speaker
8222090 item available Köf diesel switcher speaker

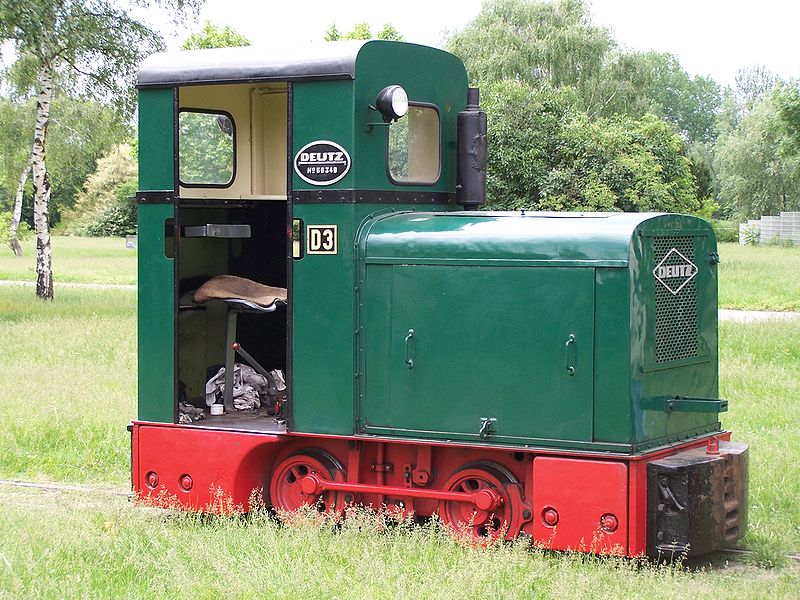

8222091 item available Industrial field railway diesel switcher speaker

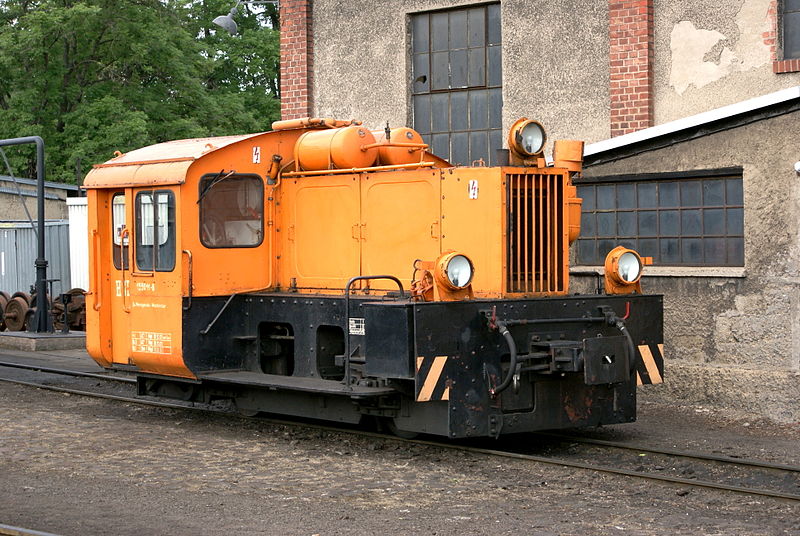

8222093 item available 199 012 HSB Köf diesel switcher speaker

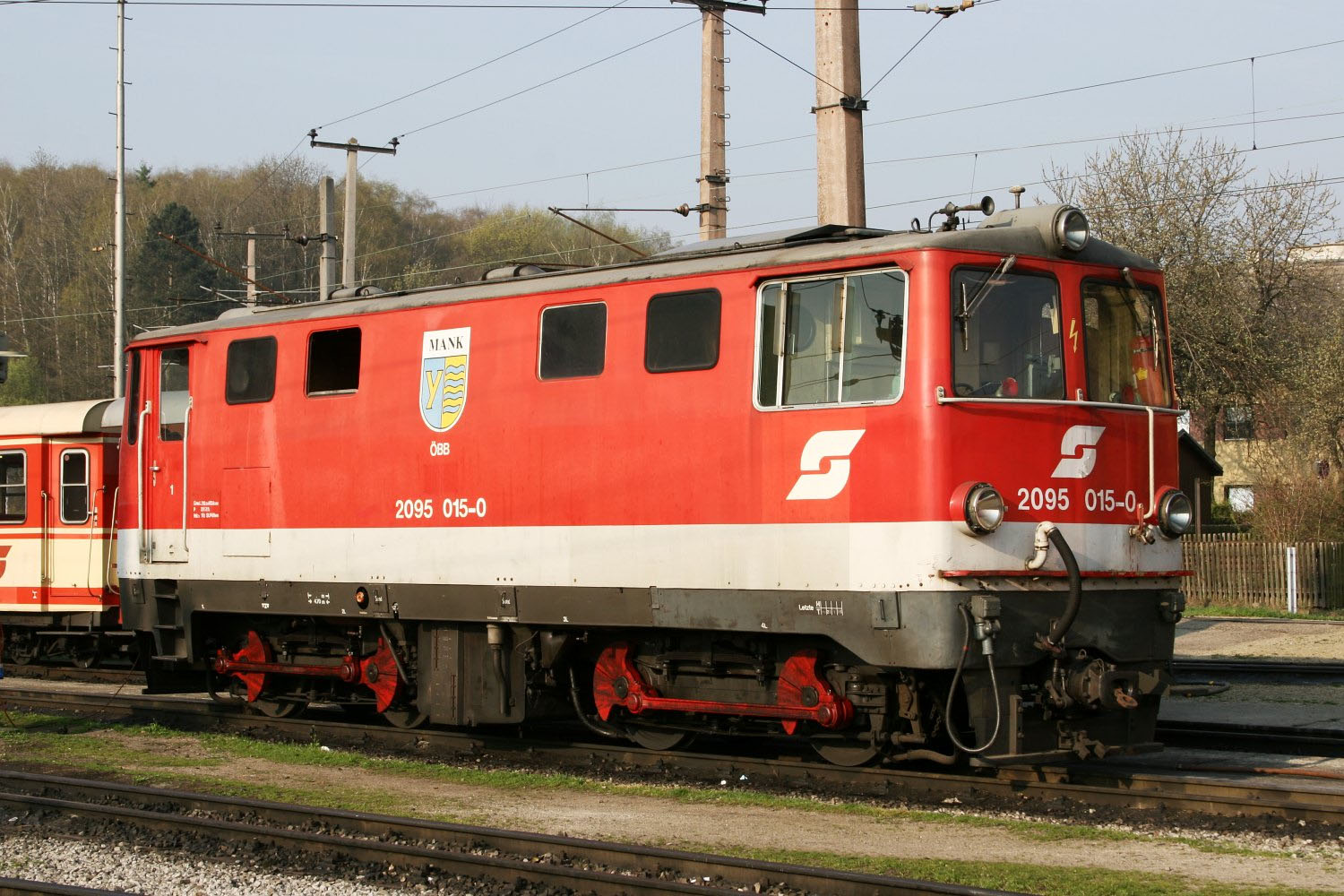

8222096 item available 2095 ÖBB diesel locomotive speaker

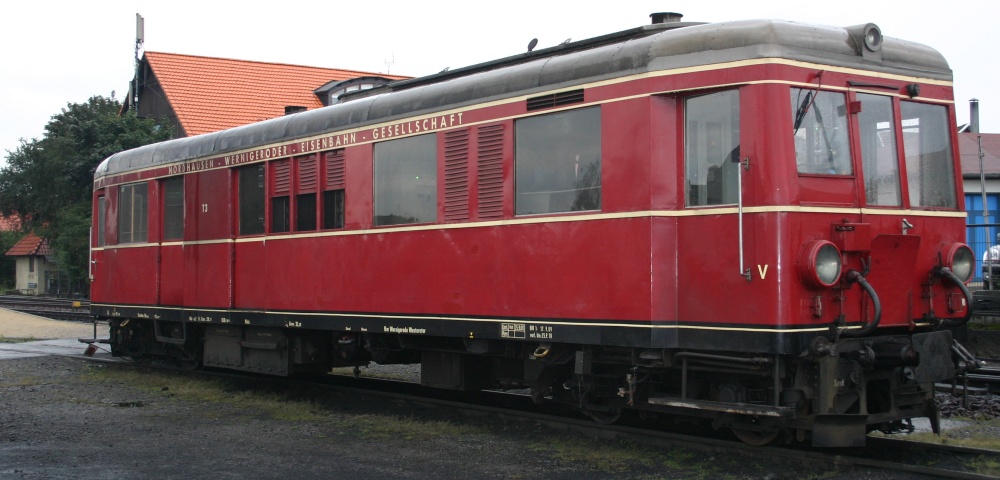

8222110 item available T3 diesel rail car speaker

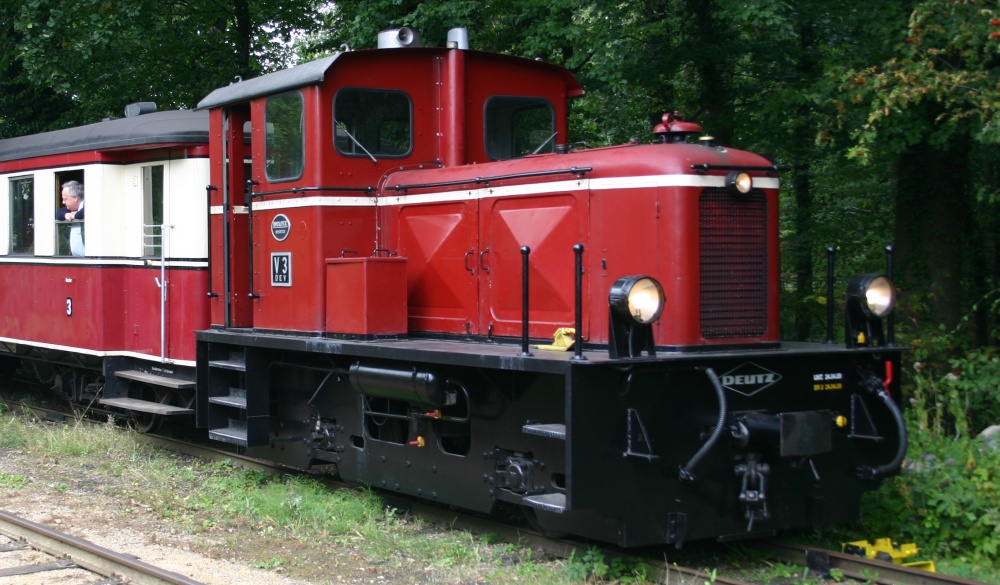

8222120 item available V3 diesel locomotive speaker

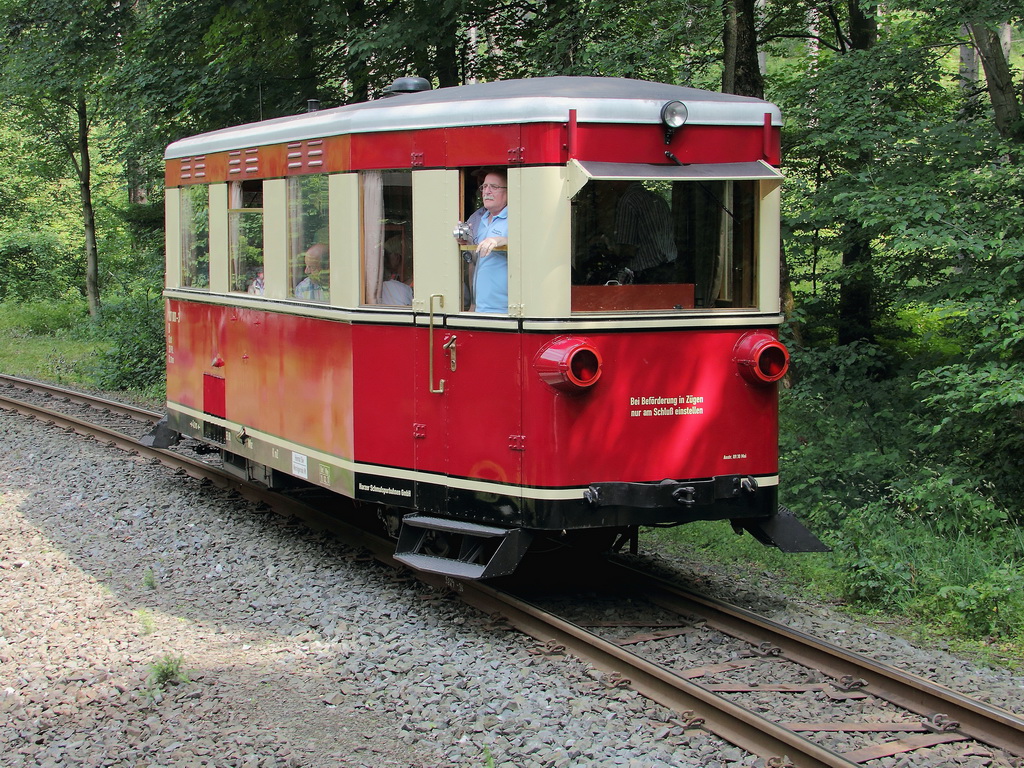

8222130 item available T1 diesel rail car

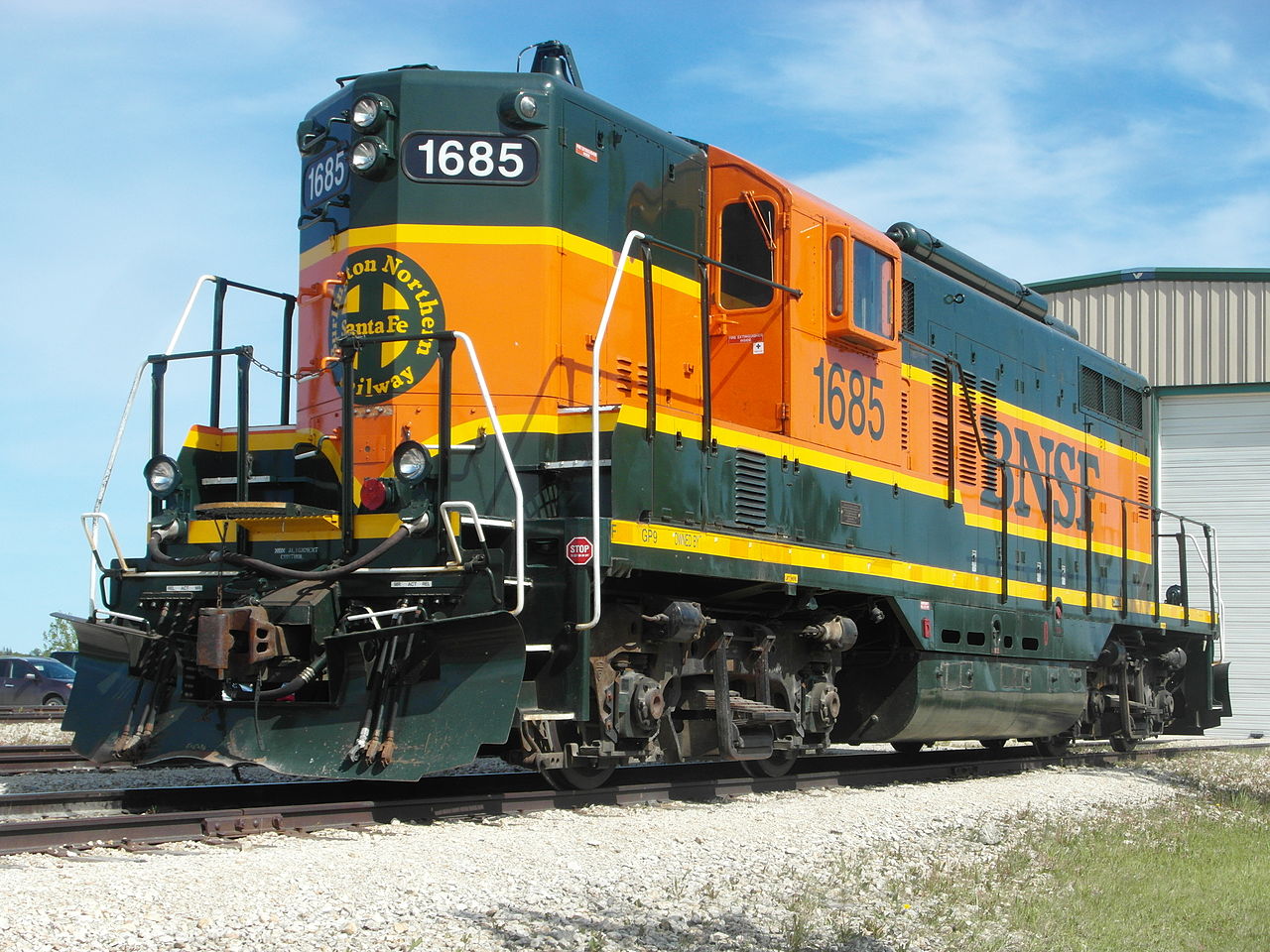

8222300 item available US diesel locomotive, EDM GP9
8222500 item available V200 (BR 220) BoBo big diesel locomotive speaker
8222510 item available V160 (BR 218) DB diesel locomotive speaker
8222520 item available VT98 rail car speaker
8222530 item available V60 diesel locomotive speaker

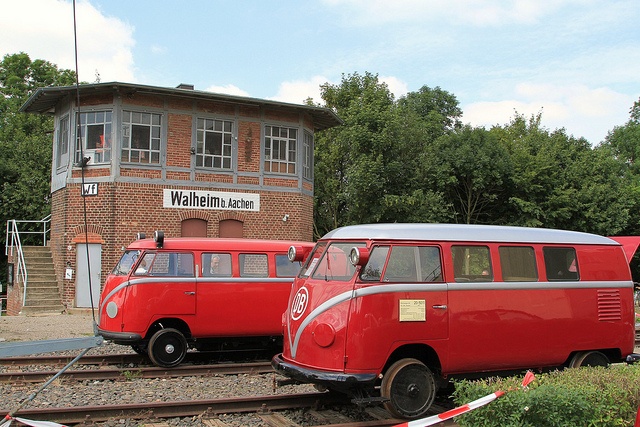

8222540 item available VW Bulli
8222550 item available V100 (BR 199 - BR 204) Harzkamel diesel locomotive speaker
8222560 item available Köf DB diesel switcher speaker
8222570 item available VT11.5 TEE DB diesel speaker
8222580 item available X5800 diesel rail bus

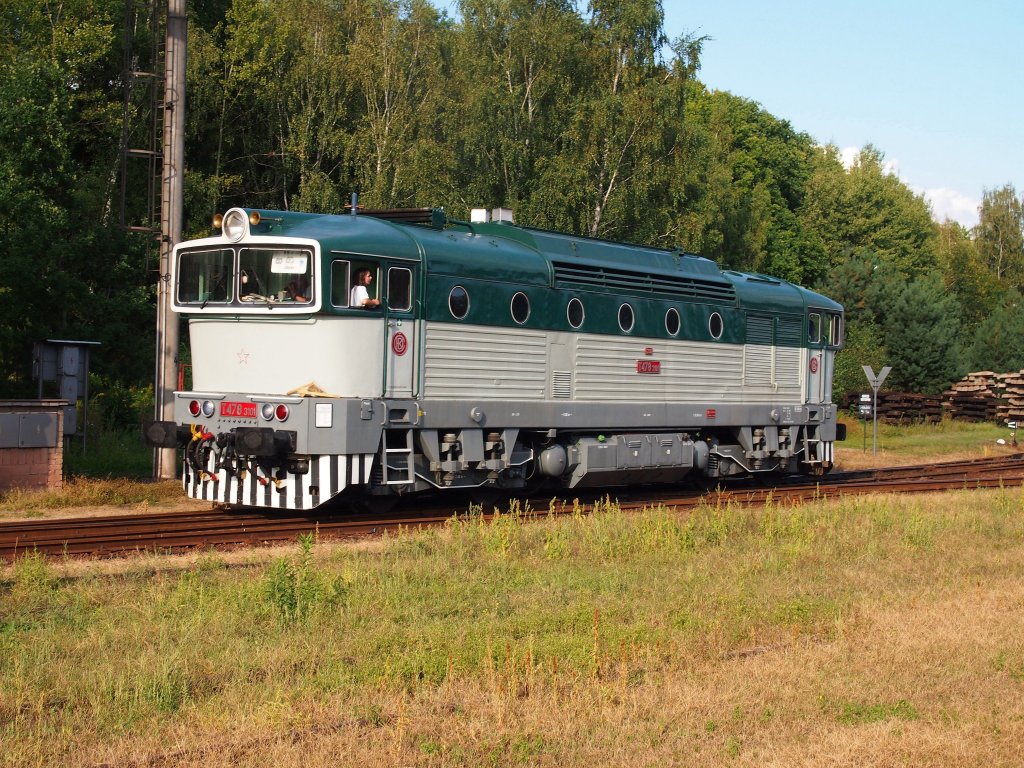

8222590 item available T478 diesel locomotive
8222600 item available V36 diesel locomotive

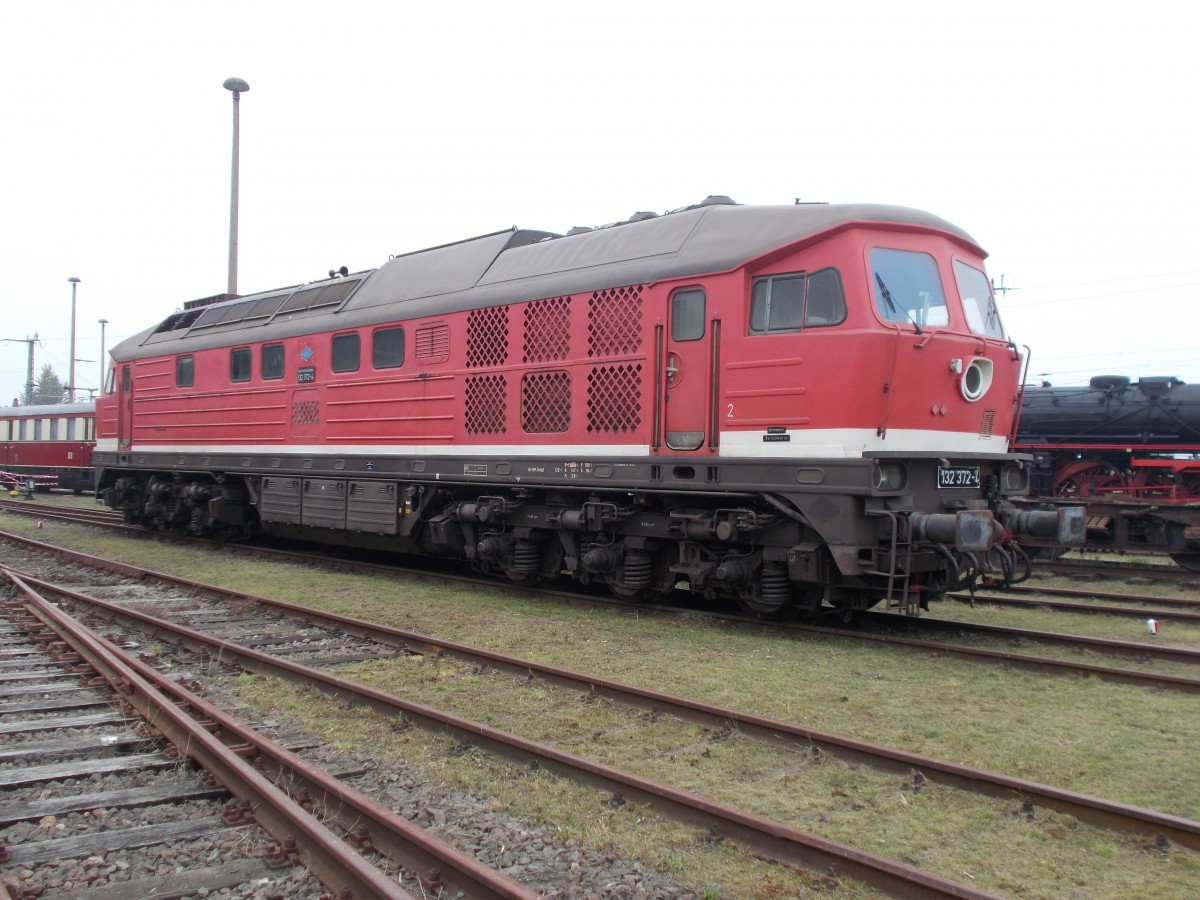

8222610 item available BR 132 Ludmilla
Electric Locomotives
8232022 item available ABe 8/12 RhB Allegra speaker
8232031 item available BR 101 DB speaker

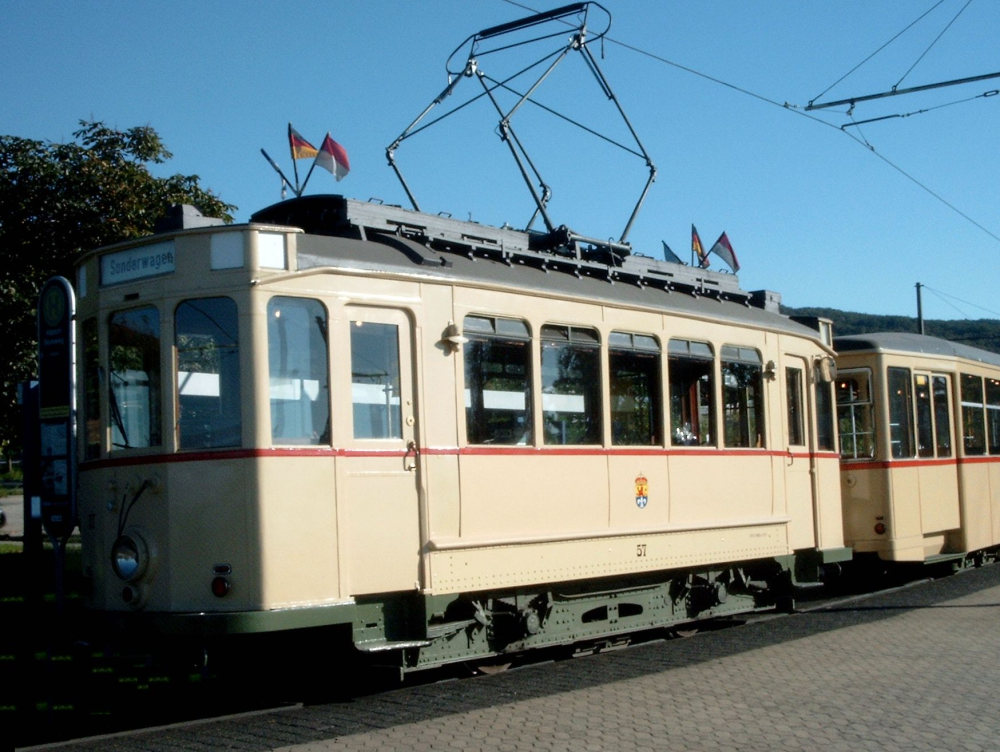

8232035 item available Historic street car, (Darmstadt -Germany) speaker

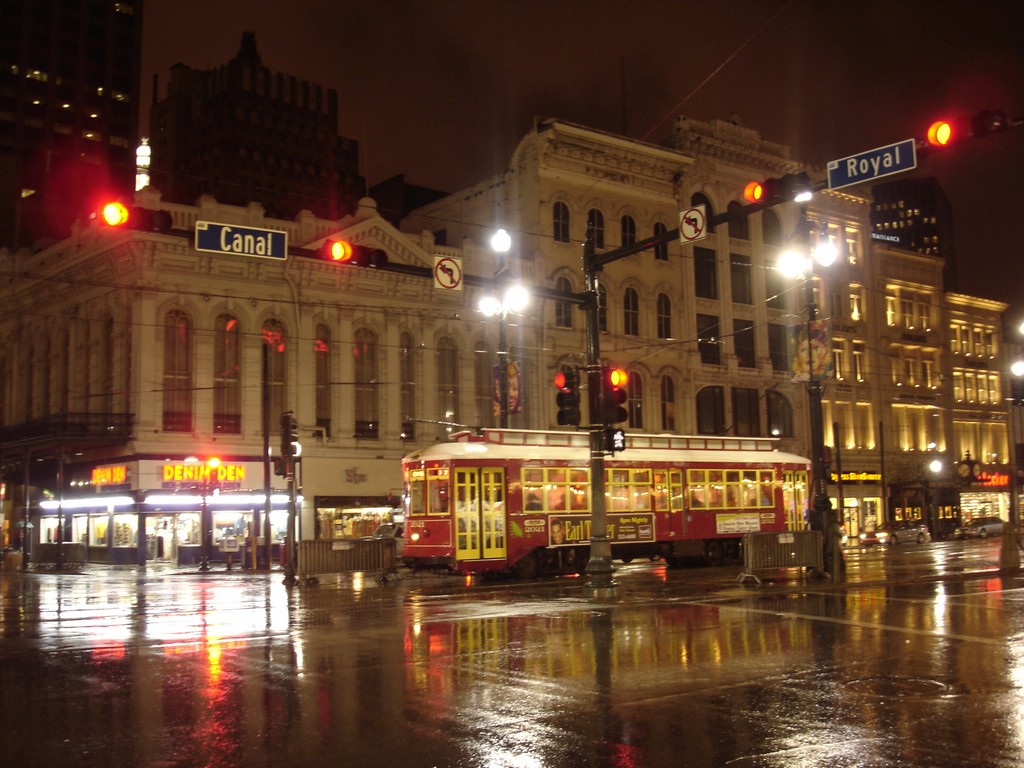

8232038 item available New Orleans street car speaker
8232039 item available ABe 4/4 RhB rail car speaker

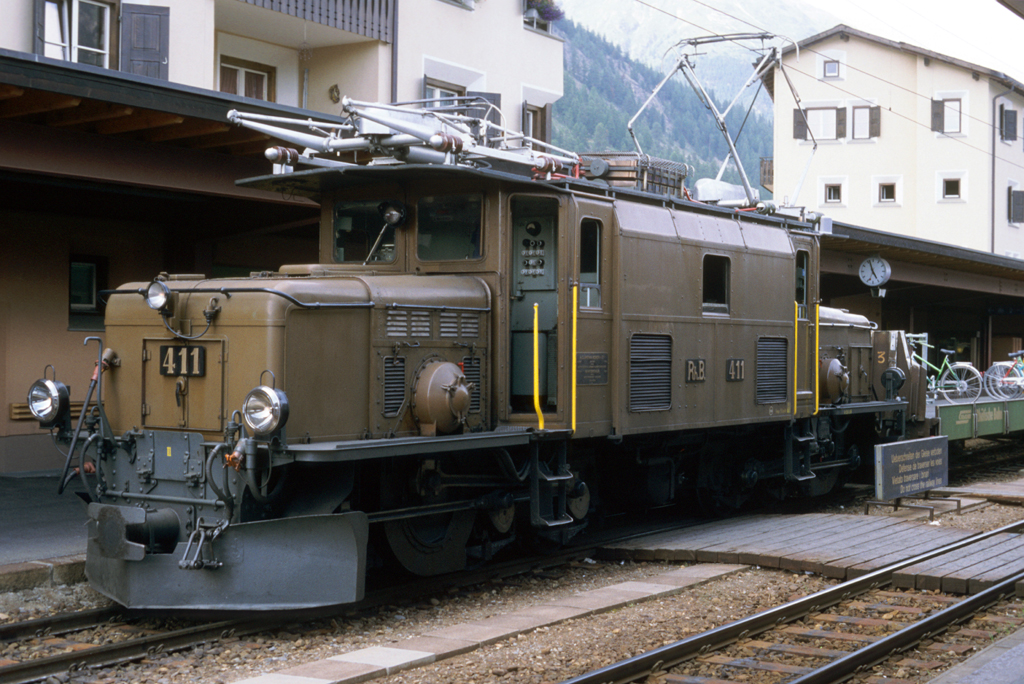

8232040 item available Ge 6/6 I RhB Crocodile speaker
8232042 item available Ge 4/4 III RhB

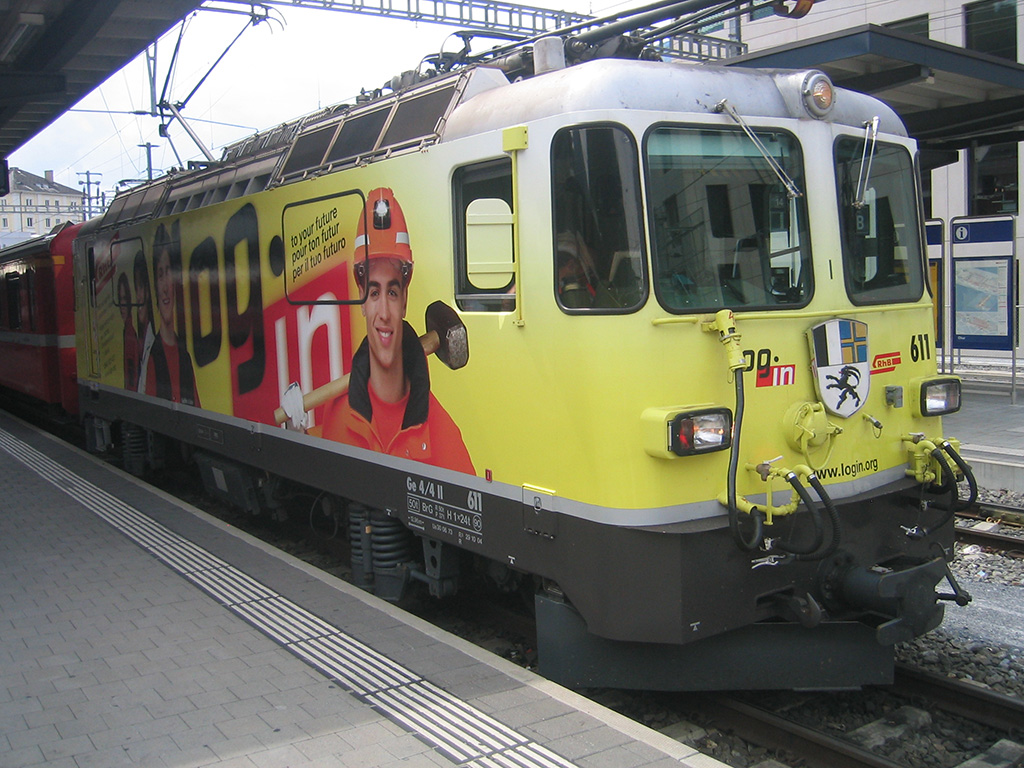

8232043 item available Ge 4/4 II RhB speaker

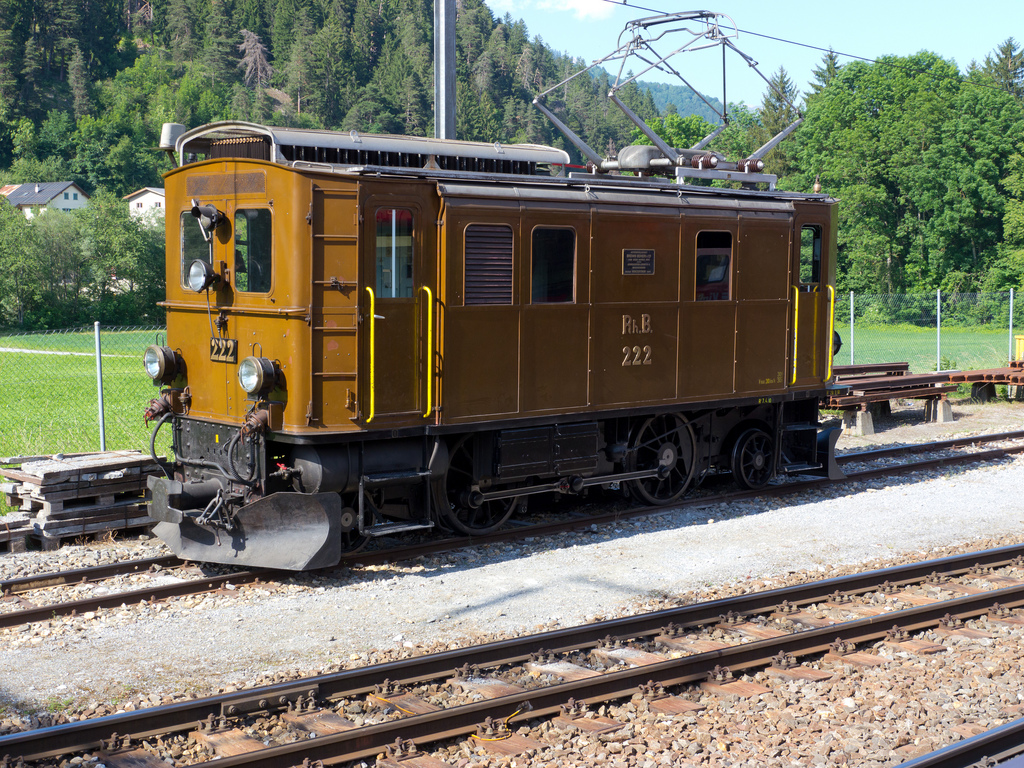

8232045 item available Ge 2/4 RhB speaker
8232075 item available E 10 (BR 110) DB Electric Locomotive speaker
8232200 item available Ge 6/6 II RhB speaker
8232210 item available Gem 4/4 I RhB speaker

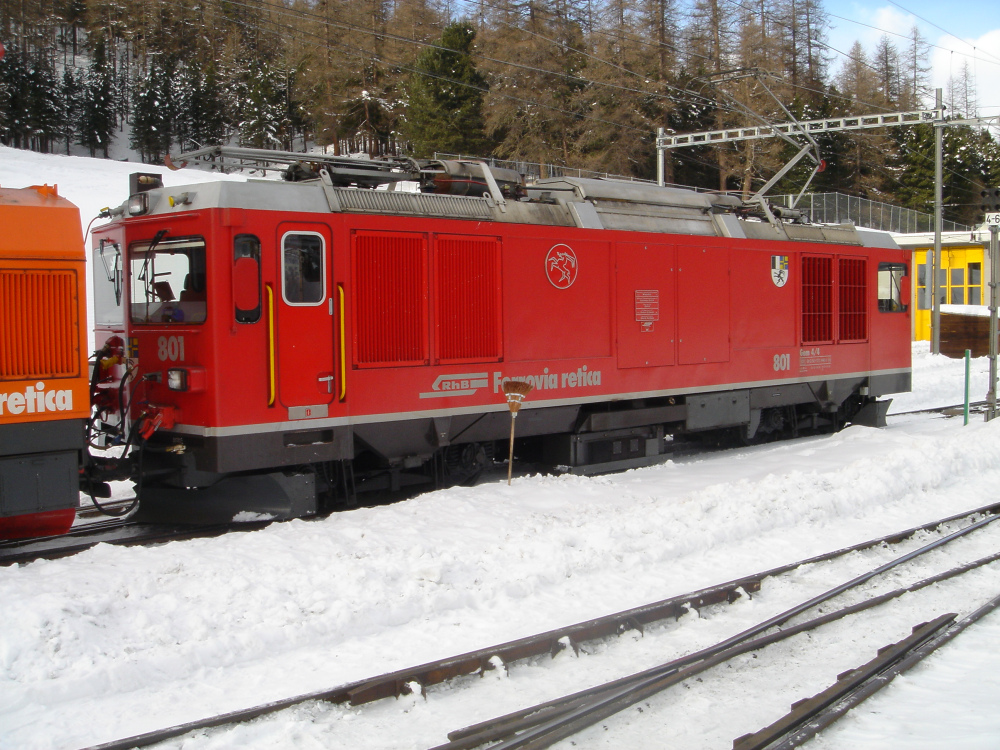

8232220 item available Ge 4/4 RhB speaker

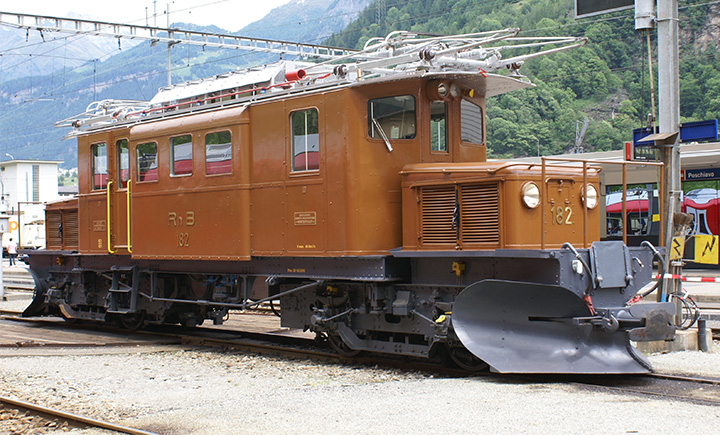

8232230 item available Ge 4/4 RhB Bernina Crocodile speaker
8232250 item available Ge 4/4 III MOB speaker
8232260 item available Ge 4/4 III (incl. 100 Year Albula jubilee sound) speaker

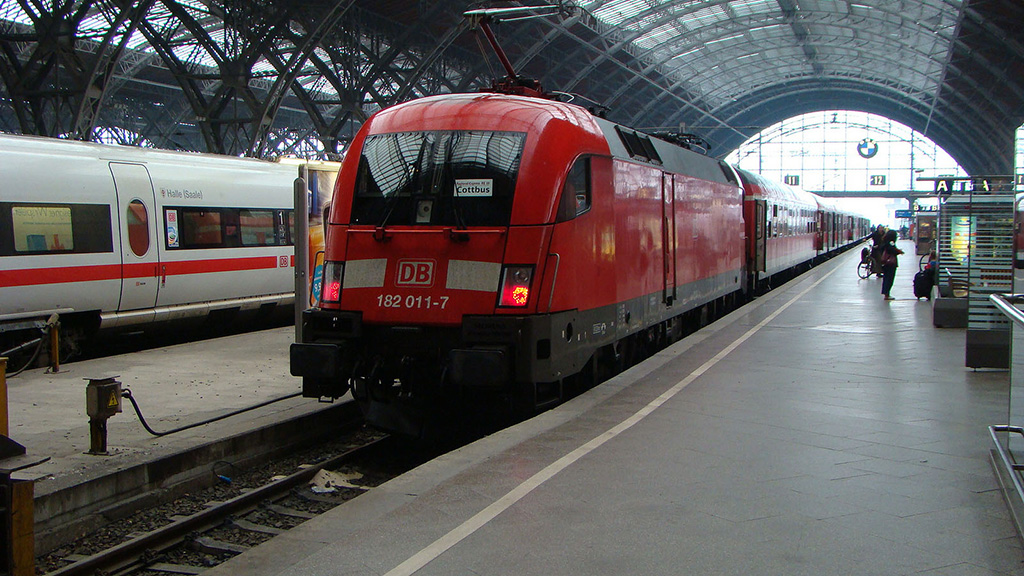

8232510 item available BR 182 Taurus speaker

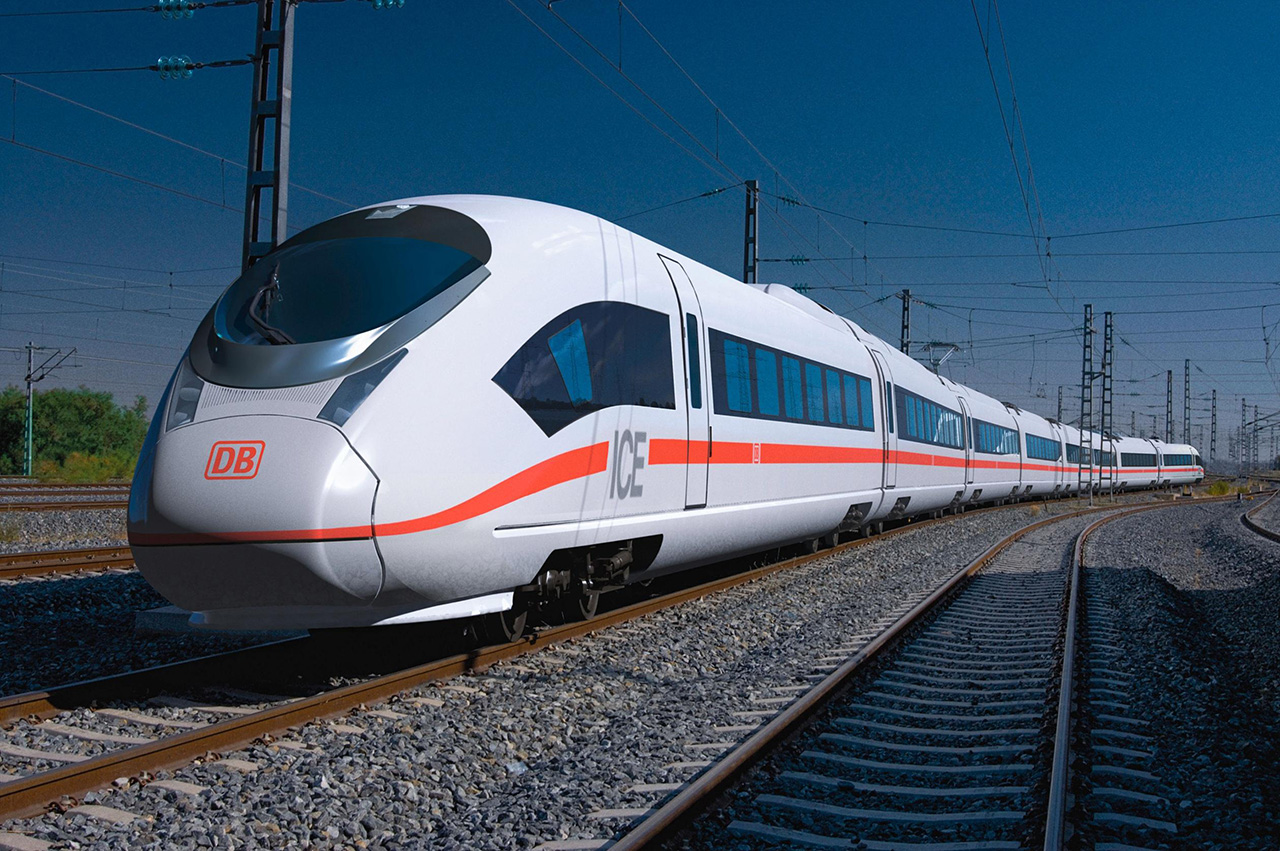

8232520 item available ICE III speaker

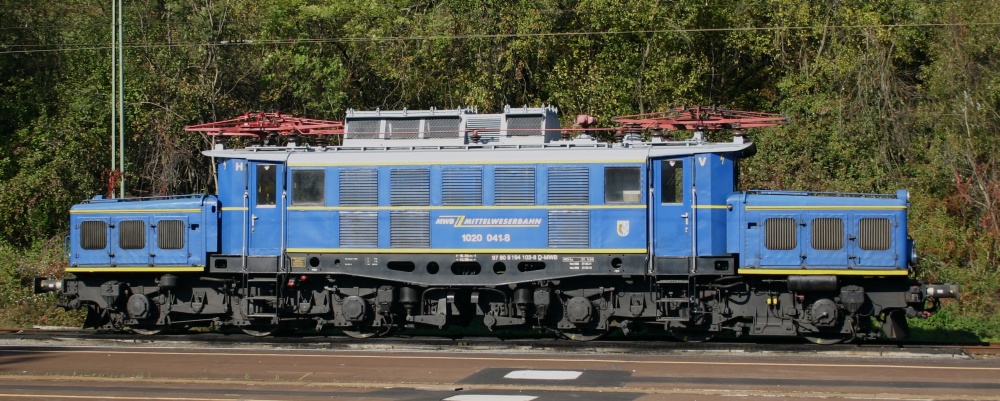

8232530 item available BR 194 (E 194) DB Crocodile speaker
