eMotion XL Locomotive Decoder

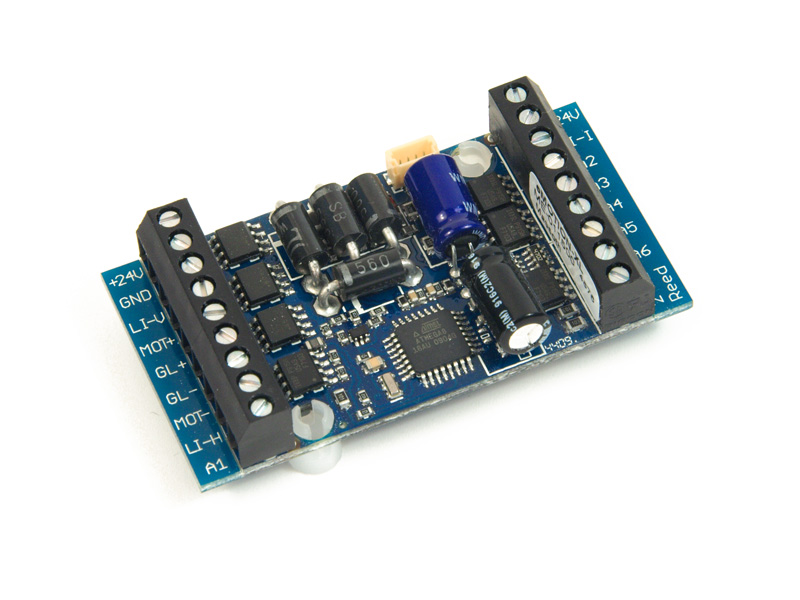

The Massoth eMOTION XL decoder is a small and powerful 4.0Amps driving and function decoder designed for installation in G-scale locomotives equipped with 1 or 2 driving motors.

The XL decoder features selectable 14/28/128 speed steps, 3 light outputs, 6 function outputs, 2 contacts inputs with a maximum total load capacity of 1.3Amps, analog and digital operation, digital and analog Back EMF, and a Massoth-SUSI interface.

Operating the XL decoder with an additional power buffer increases its dependability: brief track power disruptions are bridged in analog and digital operation and contaminated tracks and switch frogs are negotiated without any speed changes or interruptions.

The Massoth eMOTION XL decoder is fully compatible with NMRA/DCC, and compatible with all generations of the LGB® MTS system.

An optional Massoth interface cable (product #8312062) makes the XL decoder suitable for plug-and-play installation in LGB locomotives equipped with an LGB® DCC interface. The Massoth XL decoder may be used in place of the LGB 55027 MTS decoder III.

Summary of Features:

  • Total amperage: 4.0Amps
  • Motor amperage: 3.5AMps
  • Light and function outputs amperage: 1.3Amps
  • 10239 Locomotive addresses
  • 14/28/128 speed steps
  • 256 internal speed steps
  • Programmable speed curve
  • Adjustable starting, middle, and maximum speed
  • Adjustable acceleration and deceleration time
  • Adjustable motor frequency (90Hz-16kHz)
  • Latest load control technology, Back-EMF, analog and digital
  • Switching speed activated with mappable function key
  • 3 light outputs, 3 x 600mAmps (front, interior, and rear)
  • 6 function outputs, 6 x 600mAmps(A1-A6)
  • 2 reed contact inputs
  • Connection for power buffer
  • Connection for pulse generation function
  • RC servo control channel
  • Massoth-SUSI interface
  • Light and function outputs dimmable; can be activated in analog operation
  • Programmable blinking lights, short-duration function, and pulse generator function
  • Compatible with NMRA DCC and all generations of the LGB® MTS system
  • Digital and analog operation with automatic recognition
  • Serial and parallel control of all lights and function outputs including LGB® P-sound updates
  • Parallel and serial control of LGB® sound modules
  • Overload protection for motor and function outputs
  • Overheat protection for motor and function outputs
  • Easy to use function mapping with direction assignment
  • All function output are freely addressable (F1 -F16)
  • Rest function for all CV values
  • CV-read
  • CV-write
  • CV-write (bit by bit)
  • CV indirect programming - register programming for old digital system
  • CV direct register programming (CV1-CV4)
  • Programming-on-Main (POM)
  • firmware updatable

Technical specifications

  • Power supply: 0-24 Volts DC/DCC
  • Maximum total load: 4.0Amps
  • Motor output: Max. 3.5Amps, 70Hz-16kHz, load controlled, digital and analog
  • Light outputs: Max.(3 X 600mAmps) 22V dimmable
  • Function outputs [1-6]: Max.(6 X 600mAmps) 22V dimmable
  • Total light and function outputs combined: Max. 1.3Amps
  • Temperature Range: -4°F to 122°F
  • Dimensions: 50x32x12mm

Scope of Delivery

  • eMOTION XL Decoder
  • 2 LGB® motor block connecting cables (4 pieces each)
  • 2 screws 2.9x13 mm
  • 2 screws 2.9X19mm
  • User's Manual
  • Configuration Manual
