Welcome to Allaboutlgb.com
We are a Massoth Factory Authorized Dealer and the # 1 USA source for all Massoth DCC products and accessories. We carry Massoth's entire product line and we usually have nearly-all their products in-stock for immediate delivery. We ship anywhere in the US and other places when feasible, and we accept payment through PayPal.
We are also an LGB® Factory Authorized dealer and we offer a variety of products and services that are geared specifically toward owners of LGB® trains. We stock repair and replacements parts for LGB® locomotives; we repair, service and restore LGB® locomotives; and we install Massoth decoders in LGB® locomotives.
We offer a large and growing selection of repair and replacement parts for LGB® locomotives. Our repair and replacement parts are imported from Germany and manufactured by LGB®, Massoth, or one of the many LGB® OEMs.
Please do not hesitate to contact us to place an order, inquire about our products and services, or just chat. Our hours of operation and contact information are posted on our contact page.
LGB Repair Parts and Accessories
Massoth XLS Sound Decoder and Massoth Pulsed Smoke Generator for DCC
Featured Massoth Products

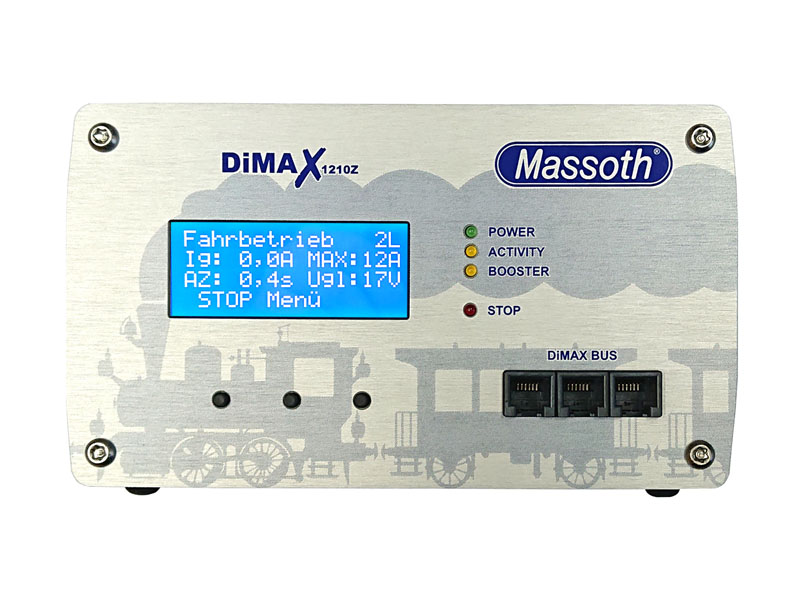

Massoth DiMAX 1210Z Central Station, 12 Amps
Product number: 8136501
$875.00 plus shipping
Please contact us to order
In stock
The Massoth DiMAX 1210Z Digital Central Station is a 12-Amp, state-of-the art, configurable, NMRA-DCC compliant, compact central station without an integrated transformer.
It features a large easy to read back-lit display, adjustable current and voltage outputs, a user friendly control menu, 3 large front-panel-mounted buttons for menu navigation and control, 3 front-panel connections for peripheral components, one USB and one RS232 computer interface, a programming track connection, a booster connection, a temperature controlled fan, automatic over-heat protection, automatic short-circuit protection, and automatic overload protection.
It is the optimal choice for operation and control of medium to large G-scale model train layouts.

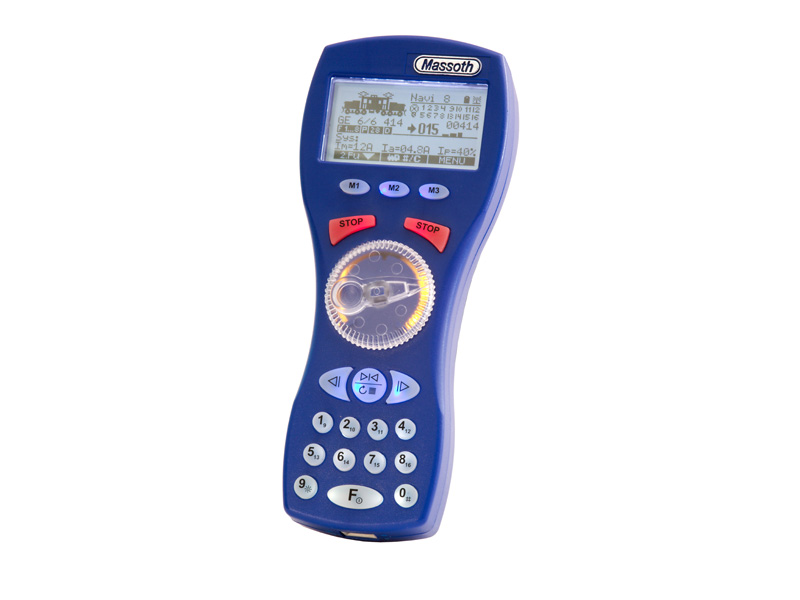

Massoth DiMAX Navigator 2.4GHz
Product number: 8134801
$300.00 plus shipping
Please contact us to order
In stock
The DiMAX Navigator 2.4GHz is a state-of-the-art, ergonomically shaped, cab controller for digital model railroads. It offers an extensive array of features and functions and an intuitive easy to navigate control menu.
Its large, back-lit LCD with a white background is easy to read, even in extreme lighting conditions.
Because of its symmetrical shape and balanced weight distribution, the Navigator is equally comfortable for right-handed and left-handed users.
The DiMAX Navigator 2.4GHz is factory equipped with a 2.4GHz transmitter enabling it to communicate with the central station either wirelessly or via a cable connection.
A Massoth DiMAX Receiver 2.4GHz [product number: 8131001] is required for wireless communication between the DiMAX Navigator 2.4GHz and the central station.

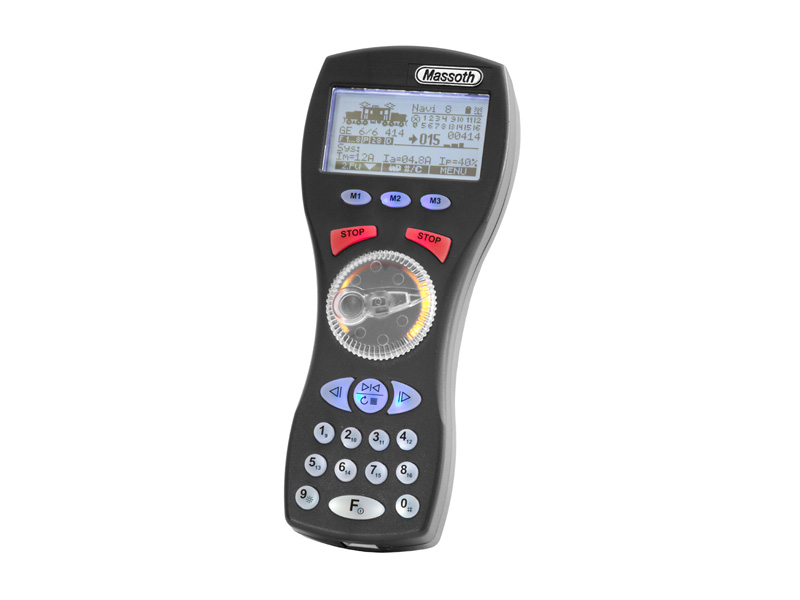

Massoth DiMAX Navigator 2.4GHz, Black
Product number: 8134802
$300.00 plus shipping
Please contact us to order
In stock
The Black Massoth DiMAX Navigator 2.4GHz is technically identical to the DiMAX Navigator 2.4GHz [product #8134801]. It is a state-of-the-art, ergonomically shaped, cab controller for digital model railroads. It offers an extensive array of features and functions and an intuitive easy to navigate control menu.
A Massoth DiMAX Receiver 2.4GHz [product number: 8131001] is required for wireless communication between the black DiMAX Navigator 2.4GHz and the central station.

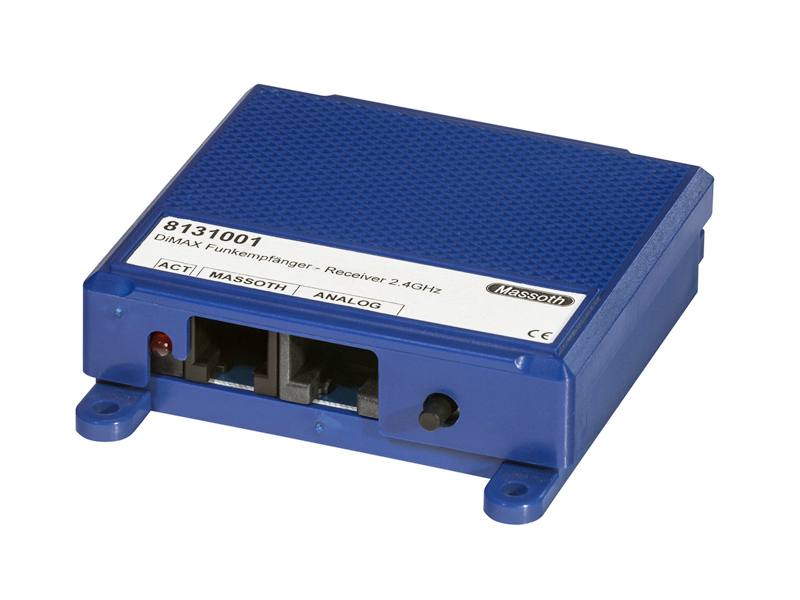

Massoth DiMAX 2.4GHz Receiver
Product number: 8131001
$159.00 plus shipping
Please contact us to order
In stock
The DiMAX 2.4GHz Receiver is a universal receiver that can be used world wide. It enables a Massoth central station, an LGB® MTS III central station, or a Piko central station to communicate wirelessly with up to 4 Massoth Navigators the same time. With a maximum of 2 receivers, a central station can communicate with up to 8 Navigators at the same time. The Massoth DiMAX 2.4GHz receiver has a range of approximately 300 feet.
2 activity LEDs report the operating status of the receiver at all times. Power for the receiver is provided by the digital bus.
The receiver is equipped with 2 connection sockets. One is used to connect the receiver to a DiMAX central station; the other may be used to connect the receiver to an LGB® 51070 throttle or a Piko® 35002 throttle for wireless analog operation using a Massoth Wireless Navigator.

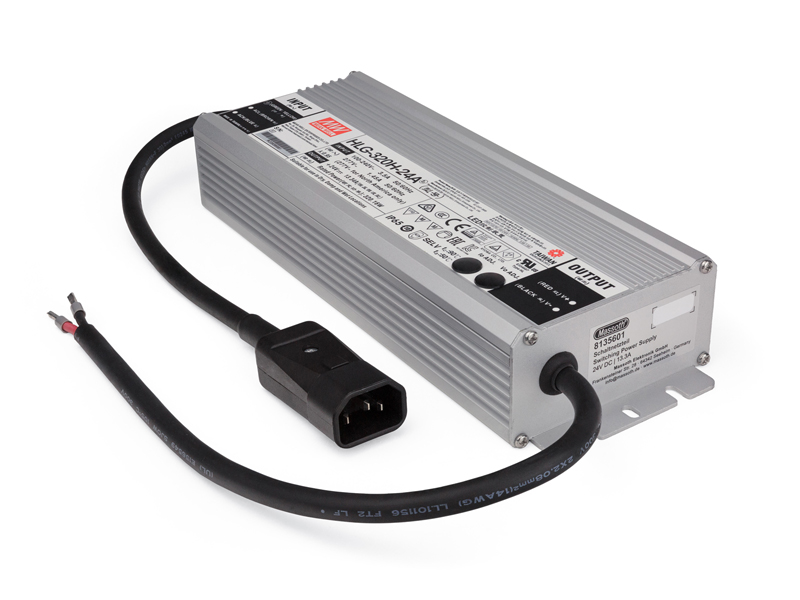

Massoth DiMAX Switching Power Supply, 24V DC, 13.3A
Product number: 8135604
$190.00 plus shipping
Please contact us to order
In stock
The new Massoth DiMAX switching power supply is the optimum power source for Massoth's DiMAX Central station and Booster! It is also suitable for other applications where a constant power output is required. It is a high performance switching power supply that delivers up 13.3 Amps continuous current @ 24V DC. it has a high quality aluminum enclosure with an IP65 rating for dust and water.

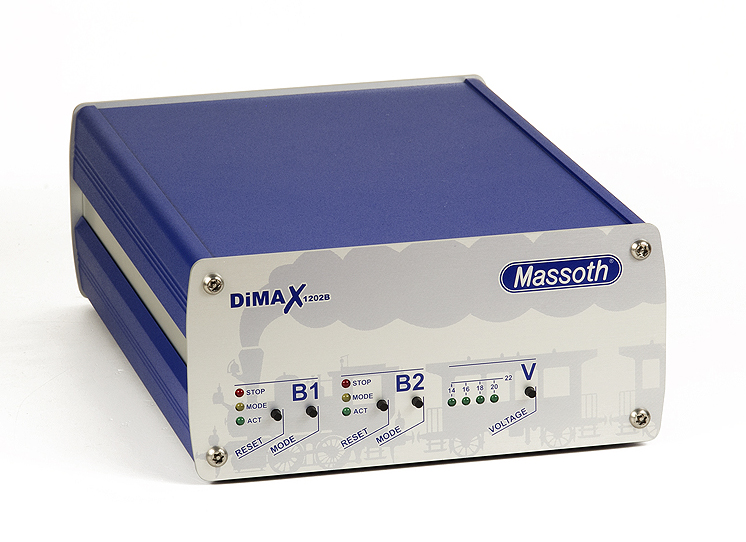

Massoth DiMAX 1202B Digital Booster
Product number: 8141001
$595.00 plus shipping
Please contact us to order
In stock
The DiMAX 1202B digital booster features two separate output channels that can be operated jointly (parallel mode) or separately (discrete mode). When the channels are operated in parallel mode, the booster is capable of a continuous throughput of 12 Amps. When the channels are operated in discrete mode, each channel is capable of a continuous throughput of 6 Amps.
The 1202B requires an external DC power supply (18-24 V DC) for operation; its output voltage can be infinitely adjusted in 2V steps from 14 to 22V.
The Booster is equipped with an integrated breaking module; it can be operated as (a) a booster or(b) a booster with a braking function.
The 1202B features a temperature controlled fan, an automatic over-heat protection circuit, automatic overload protection circuit. 6 front-panel-mounted LED-status-indicator-lights, 3 for each channel, and 4 additional indicator lights for track voltage.

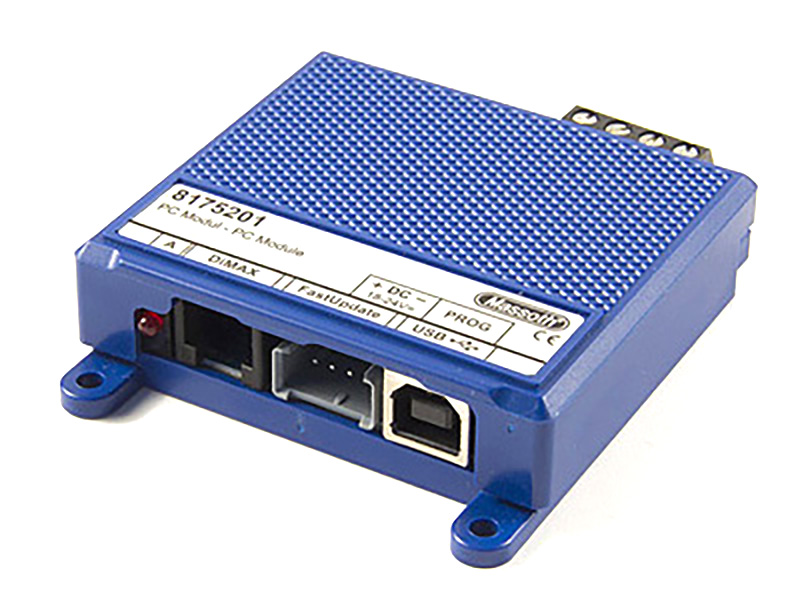

Massoth DiMAX PC Module USB
Product number: 8175201
$169.00 plus shipping
Please contact us to order
In stock
The Massoth DiMAX PC Module offers an easy way to update the firmware of Massoth DiMAX Digital bus components such as the Navigator, the feedback module, and the RC receiver. It may also be used for programming Massoth decoders or updating their firmware.
The module is required for updating the firmware and changing the sound of Massoth sound decoders.
When used in conjunction with Massoth's DCC programmer software, the module can read CV values from and write CV values to all kinds of DCC components e.g. digital decoders, sound decoders, and other digital components.
A USB cable to connect the Module to PC is provided; a SUSI fast-update cable for updating decoders equipped with a SUSI interface is also provided.
A 16-24V DC power supply (2 Amps minimum) is required to operate the module.
Massoth High Performance Pulsed Smoke Generators
Product No.: 8413502 - Pulsed Smoke Generator for DCC Operation
$99.90 plus shipping
Please contact us to order
In stock
Product No.: 8413102 - Pulsed Smoke Generator for Analog Operation
$99.90 plus shipping
Please contact us to order
In stock
The Massoth high performance pulsed smoke generator may be retrofitted in most G scale steam or diesel locomotives. It is powered through a direct connection to the track. It draws very little current (0.2 - 0.5 Amps) and produces a remarkable amount of smoke.
The smoke generator may be operated in either diesel or steam mode by setting a DIP-switch. In diesel model, the smoke generator produces a steady stream of smoke. In steam mode, the smoke generator produces puffs of smoke that are synchronized with the rotation of the locomotive's wheels. The synchronizing pulse may be generated by a wheel operated pulse generator or by the simulated pulse generator of a Massoth eMOTION decoder.
Two versions are the smoke generator are available, one for analog operation and the other for DCC operation.
Massoth Pulsed Smoke Generator for Round Boilers
Product No.: 8415001 - Pulsed Smoke Generator for Round Boilers
$109.90 plus shipping
Please contact us to order
In stock
The Massoth pulsed smoke generator for round boilers may be retrofitted in most G scale steam locomotives. It combines pulsed steam and cylinder steam functionality in a single unit. With an outer diameter of only 30mm, the unit can be easily installed in smaller G scale locomotives such as the LGB Stainz and Franzburg.
The Massoth Pulsed Smoke Generator for Round Boilers connects directly to track power and operates with DCC speed steps, hall-effect sensor, or clock signal from a decoder. With a newly designed fan and optimized airflow this smoke unit makes more smoke than ever. Overheating and dry-run protection are integrated.
The pulsed smoke generator is equipped with a fully integrated decoder that features a standard loco address and a separate programming address.
Massoth DiMAX 4-channel Switch Decoder II
Product number: 8156101
$82.00 plus shipping
Please contact us to order
In stock
The Massoth DiMAX 4-channel motor and switch decoder is an all-purpose decoder with 8 function outputs that can be controlled digitally, by reed relays, or by other switches. The decoder can be controlled via loco address or switch address.
In switch address mode, the decoder features 4 coupled function outputs: 1 & 2 (SW1), 3 & 4 (SW2), 5 & 6 (SW3), and 7 & 8 (SW4). Dual power amplifiers facilitate operation of switch drive is two directions and an intelligent protection software inhibits simultaneous operation of coupled functions.
In loco address mode, the decoder features 8 freely programmable function outputs where each output can be triggered independently.
The 4-channel switch decoder features 8 programmable contact inputs that can be used to operate switches by pushing a button on a control panel or by activating a track contact.

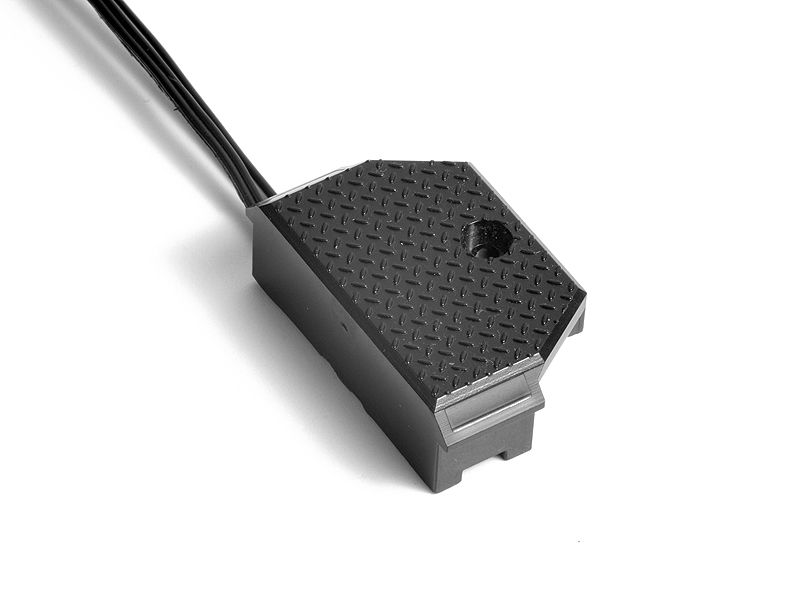

Massoth DiMAX 1-Channel Switch Decoder II
Product number: 8156601
$46.00 plus shipping
Please contact us to order
In stock
The Massoth DiMAX 1-channel function and switch decoder is a small completely sealed waterproof decoder with 2 programmable contact inputs. It can be operated digitally with a function key, or mechanically with a push-button or track contact.
It is controllable via a switch address or a locomotive address. It features one coupled function output in switch address mode or 2 function outputs in locomotive address mode; all function outputs are dimmable.
It can be used to control lights, coil-operated switch drives (2 leads), electrically-operated motor drives, and RC servos. it can also be used to control the tilting of the kettle of an LGB® 40560 Hot Metal car, or raising and lowering the sidewall of an LGB® 41610 Unloading Car.
The switch decoder fits between track sleepers; it can be affixed to the track using the provide screw and the hole in the switch housing.

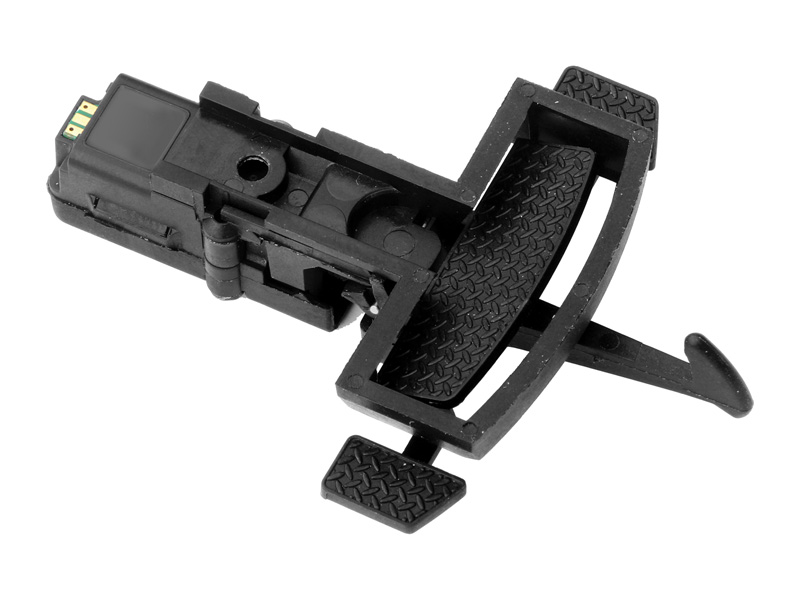

Massoth Switching Coupler, 2 pack
Product number: 8442000
126.90 plus shipping
Please contact us to order
In stock
The automatic uncoupler (#8414002) was in use for nine years. Now it is replaced by the new Switching Coupler #8442000, which not only looks different, but also differs significantly in operation. The Switching Coupler is compatible with the classic G gauge hook-and-loop coupler and features completely revised control electronics with a limit switch, plug-in connection cable, a new type of uncoupler plate along with running boards and a new coupler hook. The uncoupling plate has a visually appealing checker plate design, which is also used to uncouple the symmetrical coupler. Manual uncoupling by hand is now also conveniently possible thanks to the two small side running boards. If you don’t like these running boards, you can simply cut them off with a pair of pliers.

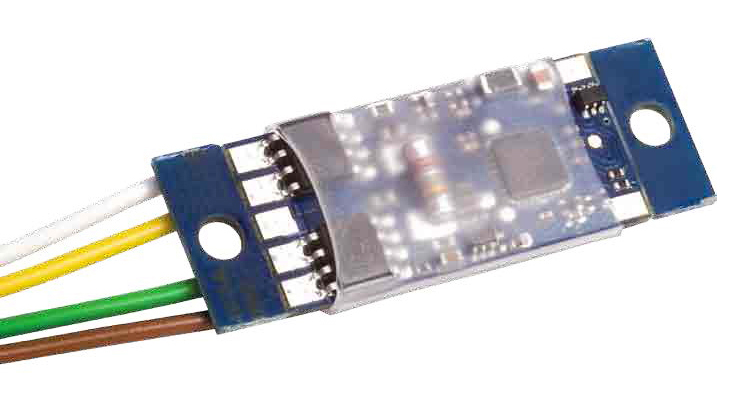

Massoth eMOTION M Locomotive Decoder
Product number: 8154501
$50.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION M decoder is an ultra-compact, 2Amps driving and function decoder designed for installation in exceptionally small locomotives.
The M decoder features selectable 14/28/128 speed steps, 2 light and 5 function outputs, analog and digital operation, digital and analog Back EMF, overload - overheat protection for motor and function outputs, and a Massoth-SUSI interface.
The Massoth eMOTION M decoder is fully compatible with NMRA/DCC, and compatible with all generations of the LGB® MTS system.
Massoth eMOTION L Locomotive Decoder
Product number: 8154001
$65.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION L decoder is a compact, 2.5 Amps driving and function decoder designed for installation in 1 motor, G-scale locomotives.
The L decoder features selectable 14/28/128 speed steps, 2 light and 6 function outputs, analog and digital operation, digital/analog Back EMF, overload - overheat protection for motor and function outputs, and a Massoth-SUSI interface.
The L decoder conforms to the pin arrangement of the LGB®'s 55021 decoder making it suitable for plug-and-play installation in LGB® locomotives equipped with a direct-decoder interface.
Massoth eMOTION XL Locomotive Decoder
Product number: 8150001
$72.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION XL decoder is a small and powerful 4.0Amps driving and function decoder designed for installation in G-scale locomotives equipped with 1 or 2 driving motors.
The XL decoder features selectable 14/28/128 speed steps, 3 light outputs, 6 function outputs, 2 contacts inputs with a maximum total load capacity of 1.3Amps, analog and digital operation, digital and analog Back EMF, and a Massoth-SUSI interface.
Operating the XL decoder with an additional power buffer increases its dependability: brief track power disruptions are bridged in analog and digital operation and contaminated tracks and switch frogs are negotiated without any speed changes or interruptions.
The Massoth eMOTION XL decoder is fully compatible with NMRA/DCC, and compatible with all generations of the LGB® MTS system.

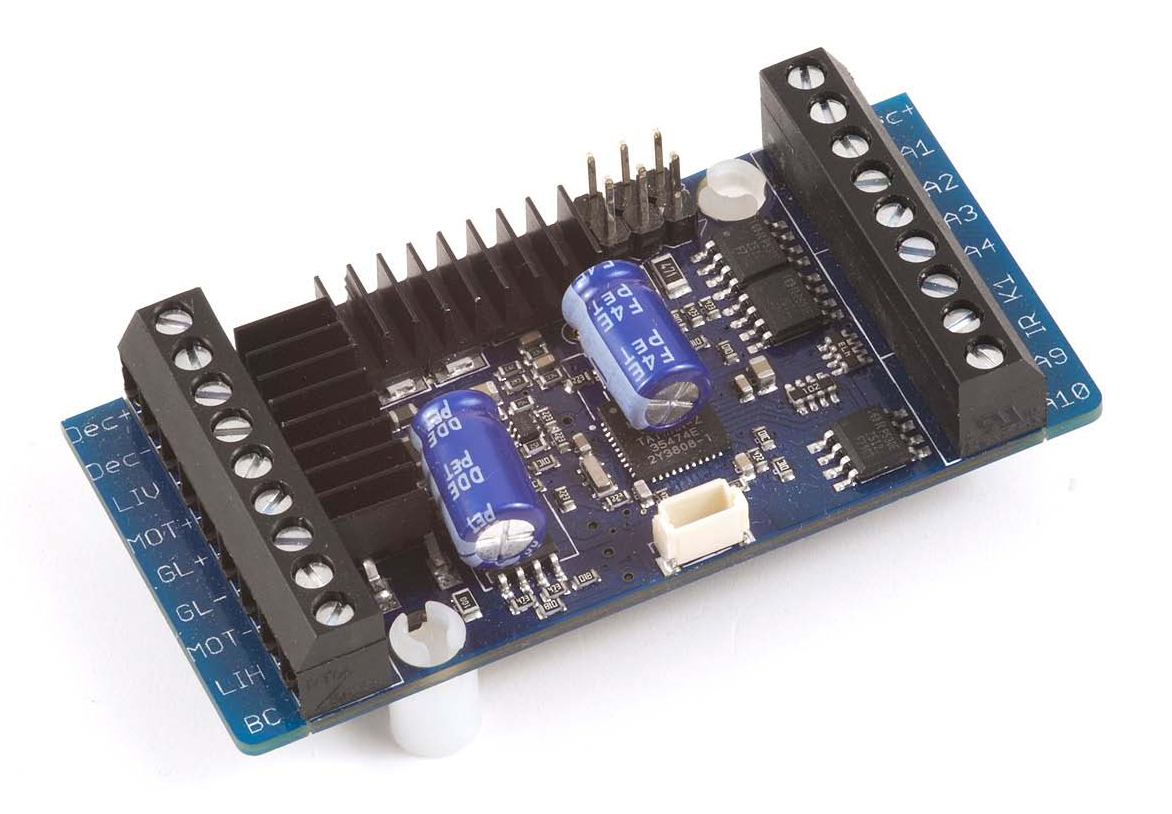

Massoth eMOTION XXL II Locomotive Decoder
Product number: 8153101
$99.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION XXL II decoder is a small 10.0Amps driving and function decoder. It is capable of handling a continuous motor load of 6.0Amps with a peak load of 8.0Amps.
The XXL II decoder features selectable 14/28/128 speed steps, 3 light outputs and 10 function outputs with a maximum total load capacity of 2.0Amps, 1 contact input, 2 servo controls, analog and digital operation, digital and analog Back EMF, and a Massoth-SUSI interface.
Operating the XXL II decoder with an additional power buffer increases its dependability: brief track power disruptions are bridged in analog and digital operation and contaminated tracks and switch frogs are negotiated without any speed changes or interruptions.
Massoth eMOTION Melody Module
Product number: 8293001
$85.00 plus shipping
Please contact us to order
In stock
The Massoth Melody Module is a programmable sound module that may be used on a model train layout to play sounds in locomotives, cars, or stationary structures; it can play up to 12 individual sounds.
The Massoth Melody Module is suitable for analog and digital operations. In digital mode, Individual sounds may be assigned to one of 28 function keys and played by pressing the assigned key; only one sound can be played at a time. Individual sounds may also be looped, activated, or deactivated permanently. In analog mode, the module plays a programmed sequence of individual sounds; the sequence starts automatically and repeats infinitely.
The Massoth Melody Module features 2 contact inputs that may be used in analog or digital mode to trigger individual sounds with track magnets or other switches.
Massoth eMOTION S Sound Decoder
Product number: 82x2xxx
$140.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION S sound decoder is small in size but big on features; it has the same sound features as the Massoth XLS sound decoder.
The S decoder features 3 output functions with overload - overheat protection, 3 contact inputs, a Massoth-SUSI interface, and a 3 watts integrated high-performance sound amplifier with 6 independent sound channels.
Especially designed for analog operation and for locomotives with existing decoders, it is suitable for either analog or digital operation and capable of detecting the operating mode automatically.
Massoth eMOTION LS Sound Decoder
Product number: 82x1xxx
165.00 plus shipping
Please contact us to order
In stock
The Massoth emotion LS decoder is a small 2.5Amps driving, function, and sound decoder designed for installation in G-scale locomotives equipped with a single motor.
The LS features a 1.9Amps output stage for a single motor, 3 light outputs, 6 function outputs, 3 contacts inputs, a Massoth-SUSI interface, and an integrated 2.4-watt class D sound amplifier with 6 independent sound channels.
The LS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.
Massoth eMOTION XLS-M1 Sound Decoder
Product number: 82x5xxx
$190.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION XLS-M1 decoder is a powerful 4.5Amps driving, function, and sound decoder designed for installation in G scale locomotives equipped with the Märklin-LGB 28-pin decoder interface.
The XLS-M1 decoder features a 3.5Amps output stage for up to two motors, 3 light outputs, 8 function outputs, 2 contacts inputs, a SUSI-MTB(Märklin Train Bus) interface, and an integrated 2-watt high performance sound amplifier with 6 independent sound channels.
The XLS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.
The Massoth eMOTION XLS-M1 decoder is fully compatible with NMRA/DCC, and compatible with all generations of the LGB® MTS system including serial and parallel control.
Massoth eMOTION XLS Sound Decoder
Product number: 82x0xxx
$190.00 plus shipping
Please contact us to order
In stock
The Massoth emotion XLS decoder is a powerful 4.0Amps driving, function, and sound decoder designed for installation in G-scale locomotives equipped with 1 or 2 driving motors. It is the quintessential decoder for G-scale model trains.
The XLS features a 3.5Amps output stage for up to two motors, 3 light outputs, 8 function outputs, 4 contacts inputs , a Massoth-SUSI interface, and an integrated 3-watt high performance sound amplifier with 6 independent sound channels.
The XLS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.
Massoth eMOTION XLS On-board Sound Decoder
Product number: 82x6xxx
$190.00 plus shipping
Please contact us to order
In stock
The Massoth eMOTION XLS on-board decoder is a powerful 4.0 Amps driving, function, and sound decoder designed for installation in LGB locomotives factory equipped with an LGB DCC Interface or an LGB On-board Decoder. Installation is plug and play, existing cables are unplugged from the factory installed PCB and plugged into the Massoth on-board decoder.
The XLS on-board decoder features a 3.5Amps output stage for up to two motors, 3 light outputs, 4 function outputs, 2 contacts inputs, a SUSI-MTB(Märklin Train Bus) interface, and an integrated 2.8 watt Class D sound amplifier with 6 independent sound channels.
The XLS offers selectable 14/28/128 speed steps, analog and digital operation, digital/analog Back EMF, and overload - overheat protection for motor and function outputs.

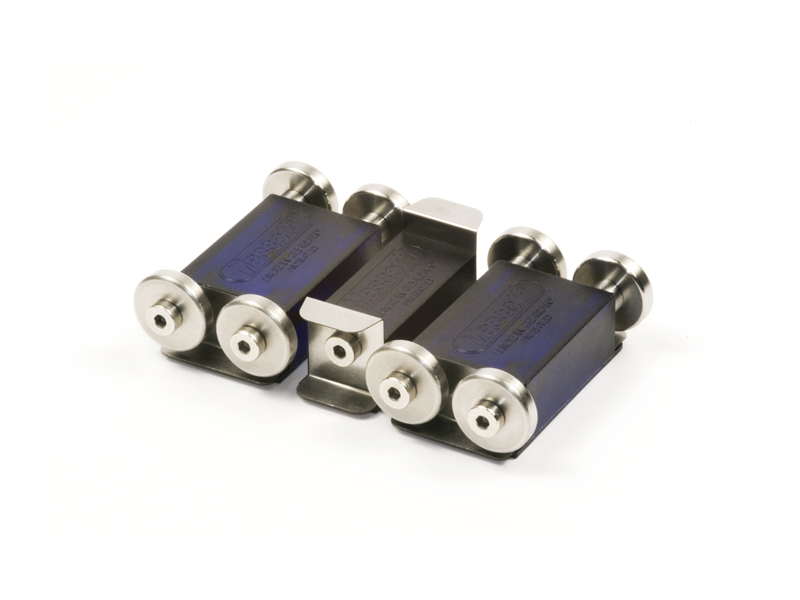

Massoth Rolling Road G, Blue
Product number: 8101200
$52.90 plus shipping
Please contact us to order
In stock
The patented Rolling Road System features a custom-made guiding wheel technology that guarantees the best running characteristics for all locomotives. This design is superior to ball bearing units. Wheel supports are firmly positioned on the tracks, even in curves, and repositioning is easy. A highlight of this design is the 3° tilt of the guiding wheels surfaces in conformance with the NEM standards (European Model Railroading Standard).
Carbon dust originating from a locomotive's carbon pick-up brushes can be removed easily from the stainless steel guiding wheels by dipping them into cleaning fluid or by vacuuming. Just use a single drop of oil to coat the guiding wheels after cleaning.
This is truly a first class product for testing or programming your favorite G-scale locomotives.
